Product Description

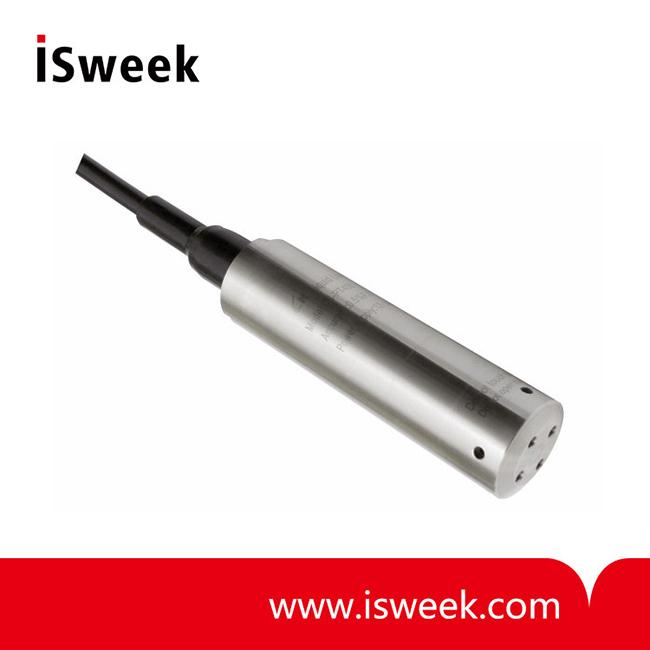

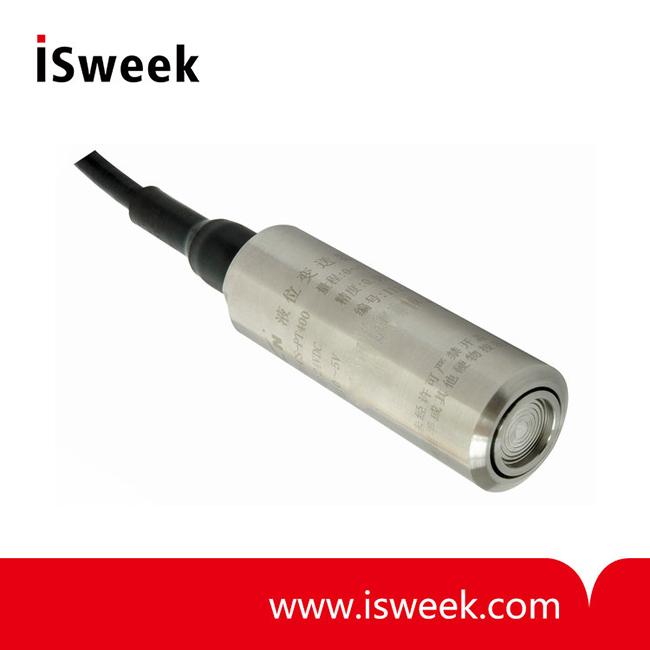

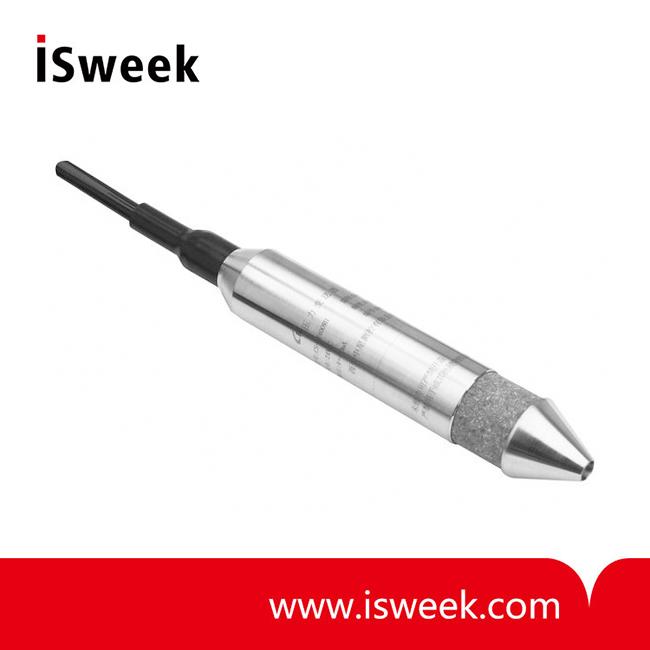

CS-PT400 Series Economical Diffuse Silicon Sensor Level Transmitter


CS-PT400 Series Level Transmitter Feature
• ±0.25%F.S, 0.5%F.S accuracy
• OEM doable
• Diffused silicon sensor
• Multiple pressure ranges and signal output
• Embedded & screwed installation
• Nonpolar two-wire current output
• AC/DC voltage powered
• Intrinsically safe, explosion-proofand
• CE approved
• Powerful electromagnetic interference proof

CS-PT400 Series Level Transmitter Application
• Hydraulic monitoring
• Constant water supply
• Frequency treatment
• Water-saving irrigation
• Urban flood control

CS-PT400 Series Level Transmitter Introduction
CS-PT400 series of level transmitters provided long term high reliability, stability, and accuracy for liquid depth and pressure measurement such as water, oil and mild corrosive liquid.

The housing adopts stainless steel. The pressure sensing elements are selected from well-known international brands. Special converting circuits can adjust zero and span range conveniently and digital adjustment are provided for products.

Special strong cables for corrosive, abrasive, and chemical environment are offered according to filed environment. The products are approved with CE, intrinsically safe and explosion-proof certificates.

CS-PT400 Series Level Transmitter Technical parameters
Parameter
 Value
 Note
Measurement range
 0~2…200mH2O
 mH2O≈9.81kPa
Overload pressure
 1.5 x RP (rated pressure)
Bruken pressure
 3.0 x RP (rated pressure)
Accuracy
 0.1%F.S, ±0.25%F.S, ±0.5%F.S
(MARS series have higher accuracy)
Stability
 Typical: 0.1%F.S, Max: 0.2%F.S
Operating temperature -40 ~ 85°C
Compensating temperature
 -10 ~ 70°C
Medium compatibility
 All corrosive medium compatible with Cr18Ni9Ti and 316L
Electrics feature
 Two-wire type
 Three-wire type
Signal output
 4~20mA
 0~5V
 0~10V
Power supply
 10~36Vdc
 10~36Vdc/ac
 12~36Vdc/ac
 dc/ac means dc and
ac are both usable
Load resistance
 (U-10)/0.02(Ω)
 >100kΩ
Insulation
 >100M Ω@50V
Elec. connector five level protcetion. IP68
Pressure Prot
 G 1/4, Embedded type
Response time
 10ms
Pressure form
 Gauge G, Absolute A
Certification
 CE, Intrinsically safe E, Explosion-proof D
EMC EMI: EN50081-1/-2; EMS: EN50082-2
Lightning Proof Air-conduction voltage 8000V, Conduction
voltage of housing and cable: 4000V
 Customizable


CS-PT400 Series Level Transmitter Type Selection Guide
