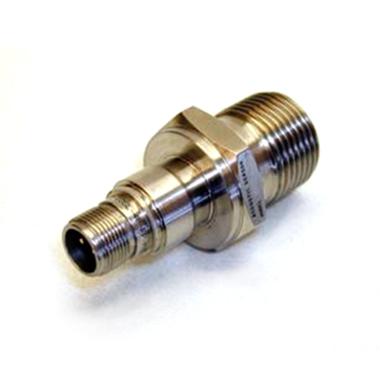

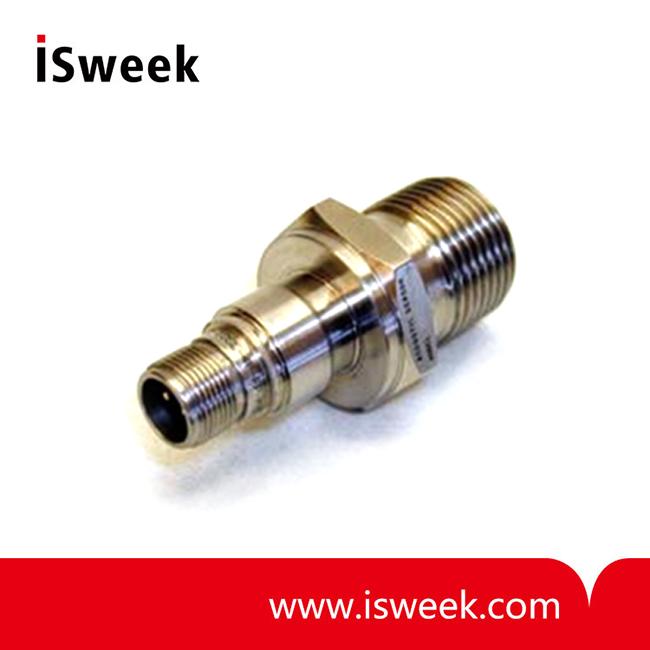

567M7 Dynamic Pressure Sensor Description
Electrically, this device comprises sensing elements of piezoceramic material in a balanced and floating configuration to provide enhanced rejection of electrical noise associated with many industrial environments. Optimum performance is achieved when used with a true differential input amplifier.
567M7 Dynamic Pressure Sensor Features
• High Sensitivity (1100 pC/psi )
• High Temperature To +500 Deg F
• Electrically Isolated
567M7 Dynamic Pressure Sensor Specifications
The Model 567M7 High Intensity Acoustic Sensor (Microphone) is designed for the measurement of gas-borne sound in industrial applications. The sensor was designed for use in corrosive environments that are compatible with the type 316 stainless steel diaphragm. Model 567M7 incorporates a 2-pin MIL-C-5015 connector interface. When combined with its all-welded construction, the sensor provides a true hermetic seal.
Electrically, this device comprises sensing elements of piezoceramic material in a balanced and floating configuration to provide enhanced rejection of electrical noise associated with many industrial environments. Optimum performance is achieved when used with a true differential input amplifier.
567M7 Dynamic Pressure Sensor Features
• High Sensitivity (1100 pC/psi )
• High Temperature To +500 Deg F
• Electrically Isolated
567M7 Dynamic Pressure Sensor Specifications
|
Transfer / Electrical |
|
|
Charge Sensitivity |
1100 +/-100 pC/psi |
|
Frequency Response |
5.2 Hz to 5,000 Hz |
|
Dynamic Range |
0.28 x 10-4 to 10 psi (191 dB SPL Max.) |
|
Avg Temp Coeff of Sensitivity |
0.08% / Deg F Nominal |
|
Transducer Capacitance |
10,000 pF +/-10% |
|
Insulation Resistance |
100 Megohms Min., 50 VDC Test |
|
Isolation Resistance |
100 Megohms Min., 50 VDC Test |
|
Dielectric Strength |
550 Vrms, 60 Hz, Element to Housing |
|
Environmental |
|
|
Vibration Limit |
100 g Max. (Sine) |
|
Shock Limit |
1,000 g Max., 0.25 mSec |
|
Temperature Range |
-10 to +500 Deg F (-23 to +260 Deg C) |
|
Humidity 1 |
0 To 100% R.H. |
|
Static Pressure |
550 psi Max. (Diaphragm) |
|
Electromagnetic Sensitivity |
0.005 g (Equiv / 100 Gauss) |
|
Physical |
|
|
Configuration |
Balanced Floating Compression |
|
Size |
1.375 In. Hex. x 2.87 In. H (35.0 mm Hex. x 53.34 mm H) |
|
Weight |
7.0 Oz (200 Gm) |
|
Material Body & Diaphragm |
Type 316 Stainless Steel |
|
Electrical Interface |
2-Pin MIL-C-5015 Style Connector |
|
Mounting |
1.125 – 12 UNF-2A Straight Thread |
NOTES:
1 With Connector Mated or Protected, Unit is Hermetically Sealed.
