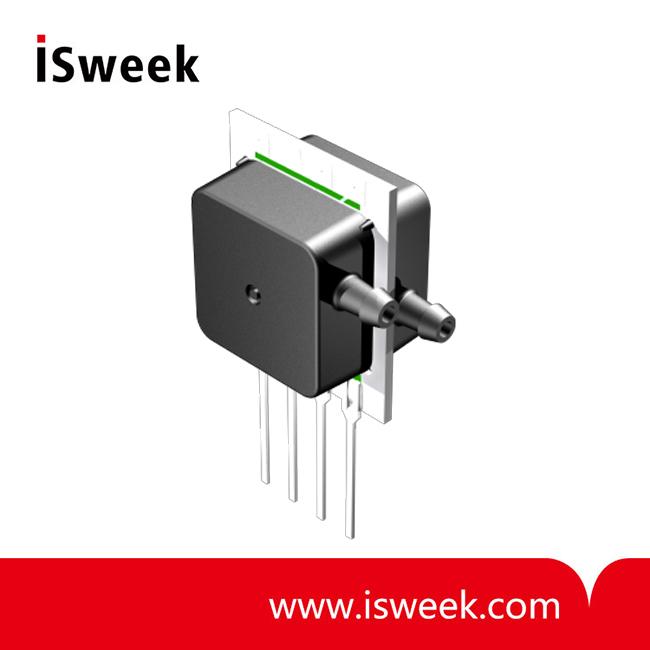

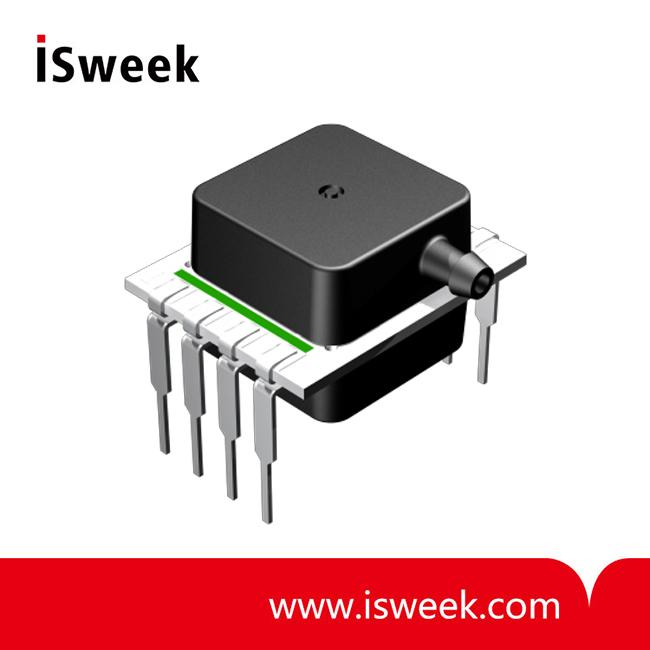

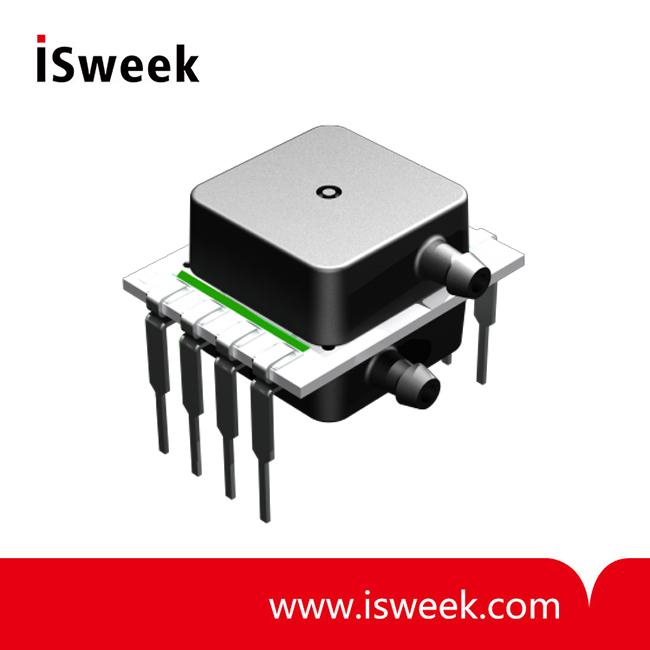

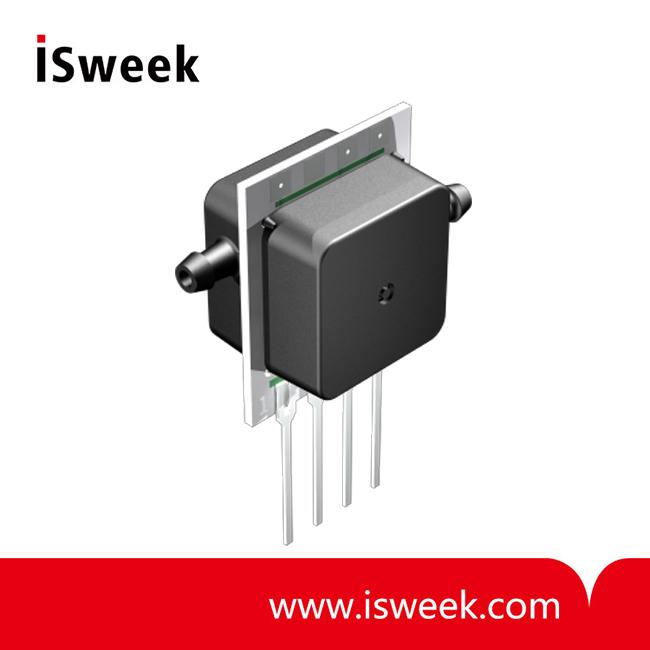

DLV Series Low Voltage Digital Pressure Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    DLV-005G-E1BD-C-NI3F

  • Data Sheet

  • Package

    Original packaging

  • Specs

    DLV-005G-E1BD-C-NI3F

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

DLV Series Low Voltage Digital Pressure Sensors General Description
The DLV Series Mini Digital Output Pressure Sensor is based on the already popular DLVR series pressure sensors. This series offers excellent perfromance over middle pressure ranges of 5 PSI to 60 PSI compared to the DLVR low pressure range products.

The supply voltage options ease integration of the sensors into a wide range of process control and measurement systems, allowing direct connection to either I2C or SPI serial communications channels. For battery-powered systems, the sensors can enter very low-power modes between readings to minimize load on the power supply

These calibrated and compensated sensors provide accurate, stable output over a wide temperature range. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gasses and the like. A SIL-Gel die coating is added for enhanced media protection.

DLV Series Low Voltage Digital Pressure Sensors Features
• 5 to 60 psi and Barometric Pressure Ranges
• 3.3V or 5.0V Supply Voltage
• I2C or SPI Interface
• Better than 0.5% Accuracy Over Temperature Typical
• Die Sil-Gel Coating for Enhanced Media Protection

DLV Series Low Voltage Digital Pressure Sensors Applications
• Medical Breathing
• Environmental Controls
• HVAC
• Industrial Controls
• Portable/Hand-Held Equipment

DLV Series Low Voltage Digital Pressure Sensors
Pressure Sensor Maximum Ratings
Environmental Specifications
Supply Voltage (Vs)
 6 Vdc
 Compensated Temperature
Common Mode Pressure
 10 psig (70 kPa)
     Commercial
 0°C to 70°C
Lead Temperature (soldering 2-4 sec.)
 270 °C
     Industrial
 -20°C to 85°C


Operating Temperature
 -25°C to 85°C


Storage Temperature
 -40°C to 125°C


Humidity Limits (non condensing)
 0 to 95% RH

DLV Series Low Voltage Digital Pressure Sensors Standard Pressure Ranges
Device
 Operating Range
 Proof Pressure
 Burst Pressure
 Nominal Span
PSI
 kPa
 PSI
 kPa
 PSI
 kPa
 Counts
DLV-005D
 ± 5
 35 20 140
 40 275
 ±6,553
DLV-015D
 ± 15
 100 40 415
 120 830
 ±6,553
DLV-030D
 ± 30
 200 120 830
 200
 1,380
 ±6,553
DLV-060D
 ± 60
 400 200
 1,380
 200
 1,380
 ±6,553
DLV-005G
 0 to 5
 35 20 140
 40 275 13,107
DLV-015G
 0 to 15
 100
 60 415
 120
 830
 13,107
DLV-030G
 0 to 30
 200
 120 830
 200
 1,380
 13,107
DLV-060G
 0 to 60
 400
 200 1,380
 200
 1,380
 13,107
DLV-015A
 0 to 15 psiA
 100 60 415
 120
 830
 13,107
DLV-030A
 0 to 30 psiA
 200 120 830
 200 1,380
 13,107
DLV-060A
 0 to 60 psiA
 400 200 1,380
 200 1,380
 13,107
DLV-611M
 600 to 1100 mbarA
 60 to 110 kPa
 60 415
 120
 830
 13,107

DLV Series Low Voltage Digital Pressure Sensors How to Order
Refer to Table 1 for configuring a standard base part number which includes the pressure range, package and temperature range. Table 2 shows the available configuring options. The option identifier is required to complete the device part number. Refer to Table 6 for the available package options.
Example P/N with options: DLV-005G-E1BD-C-NI3F

Table 1 - How to Configure a Base Part Number


Table 2 - How to Configure an Option Identifier
