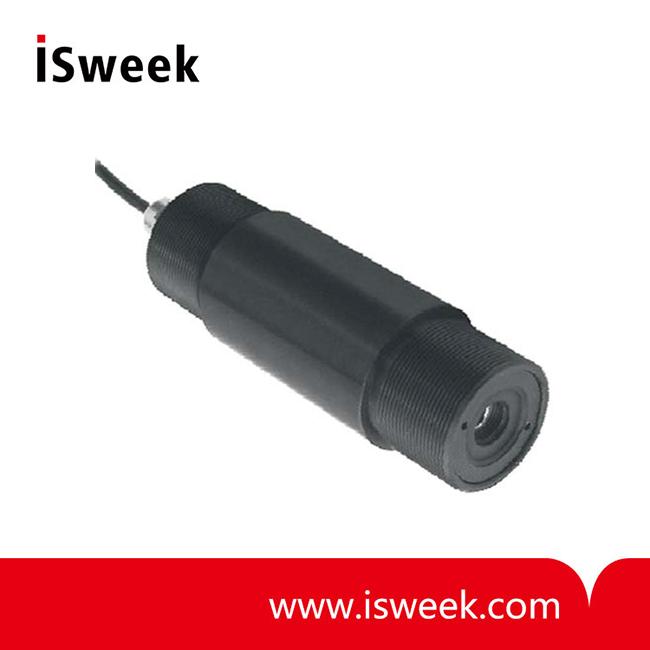

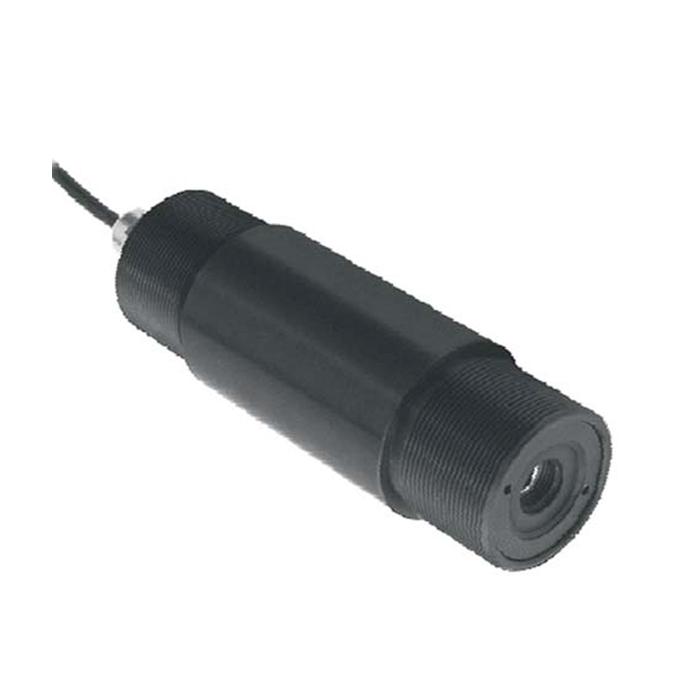

Digital Two-wire Loop Powered Infrared Temperature Sensor
-
Price
Price on request ≥1piece
-
Model Number
PSC-CX -
Data Sheet
-
Package
Original packaging -
Specs
PSC-CX -
Quantity
- +Send Inquiry
Find Similar Products
-
Thermopile Infrared Temperature Sensor Module
Model Number：TSEV01CL55
MOQ：1
-
Infrared Thermopile Temperature Sensor
Model Number：TS318-1B0814
MOQ：1
-
Assembled Armored Platinum Resistor
Model Number：WZPKK Series
MOQ：1
-
Armored Thermocouple
Model Number：WR Series
MOQ：1
-
“ZERO DRIFT” High Accuracy Integrated Temperature Transmitter
Model Number：WBZPKK-&WXBZPKK- Series
MOQ：1
-
“ZERO DRIFT” High Accuracy Thermocouple Integrated Temperature Transmitter
Model Number：WBR&WXBR Series
MOQ：1
Product Description
PSC-CX
Digital, two wire, loop powered infrared temperature sensor for OEM applications
PSC-CX Infrared Temperature Sensor Description
The PSC-CS self-Contained, 2-wire loop powered IR temperature sensor with 4-20 mA output features:
• High-performance, great value
• Simple 2-wire installation
• Wide range of -30°C to 900°C (adjustable with PSC Connect Software)
• Optical resolution of 22:1
• Optional USB programming interface
• Alarm output (0-30 V / 500 mA)
• Real-time 2-wire output and digital communication
• Versatile power requirements: 5-30 VDC
PSC-CX Infrared Temperature Sensor Specifications
Digital, two wire, loop powered infrared temperature sensor for OEM applications
PSC-CX Infrared Temperature Sensor Description
The PSC-CS self-Contained, 2-wire loop powered IR temperature sensor with 4-20 mA output features:
• High-performance, great value
• Simple 2-wire installation
• Wide range of -30°C to 900°C (adjustable with PSC Connect Software)
• Optical resolution of 22:1
• Optional USB programming interface
• Alarm output (0-30 V / 500 mA)
• Real-time 2-wire output and digital communication
• Versatile power requirements: 5-30 VDC
PSC-CX Infrared Temperature Sensor Specifications
|
General Specifications |
|
|
Environmental rating |
IP 65 (NEMA-4) |
|
Ambient temperature |
-20 - 75°C |
|
Storage temperature |
sensing head: -40 - 85°C |
|
Relative humidity |
10-95%, non condensing |
|
Vibration |
IEC 68-2-6: 3 G, 11-200 Hz, any axis |
|
Shock |
IEC 68-2-27: 50 G, 11ms, any axis |
|
Weight |
350 g |
|
Electrical Specifications |
|
|
Outputs/analog |
4 - 20 mA |
|
Output/Alarm |
0-30 V/ 500 mA (open collector) |
|
Outputs/digital (optional) |
USB |
|
Loop impedances |
max. 1000 Ω |
|
Cable length |
8 m |
|
Power supply |
5 - 30 V DC |
|
Measurement Specifications |
|
|
Temperature range (scalable via software) |
-30 - 900°C |
|
Spectral range |
8 -14µm |
|
Optical resolution |
22:1 |
|
CF-Optics (optional) |
0.6mm @10 mm |
|
System accuracy (at ambient temperature 23±5°C and object temperture >20°C) |
±1% or ±1.4°C |
|
Repeatability (at ambient temperature 23 ±5°C and object temperture >20°C) |
±0.5% or ±0.7°C |
|
Temperature resolution |
0.1°C |
|
Exposure time (90% signal) |
150ms |
|
Emissivity/Amplification (adjustable via soft-ware) |
0.100 - 1.100 |
|
Transmissivity (adjustable via software) |
0.100 - 1.000 |
|
Signal processing (parameter adjustable only via softwre) |
peak hold, valley hold, average; extended hold function with threshold and hysteresis |
