Digital Sulfur Dioxide (SO2) Gas Sensor Module
-
Price
Price on request ≥1piece
-
Model Number
DGS-SO2 968-038 -
Data Sheet
-
Package
Original packaging -
Specs
DGS-SO2 968-038 -
Quantity
- +Send Inquiry
Find Similar Products
-
Sulfur Dioxide Sensor (SO2 Sensor)
Model Number：SO2-AF
MOQ：1
-
Electrochemical Sulfur Dioxide (SO2) Gas Sensor 0-20ppm
Model Number：ME3-SO2
MOQ：1
-
15x15 Sulfur Dioxide (SO2) Sensor 20 ppm C Package 110-602
Model Number：3SP_SO2_20 C
MOQ：1
-
Sulfur Dioxide Sensor (SO2 Sensor) 4-Electrode
Model Number：SO2-B4
MOQ：1
-
Sulfur Dioxide Sensor (SO2 Sensor) 4-Electrode
Model Number：SO2-A4
MOQ：1
-
Miniature Size Sulfur Dioxide Sensor
Model Number：SO2-D4
MOQ：1
Product Description

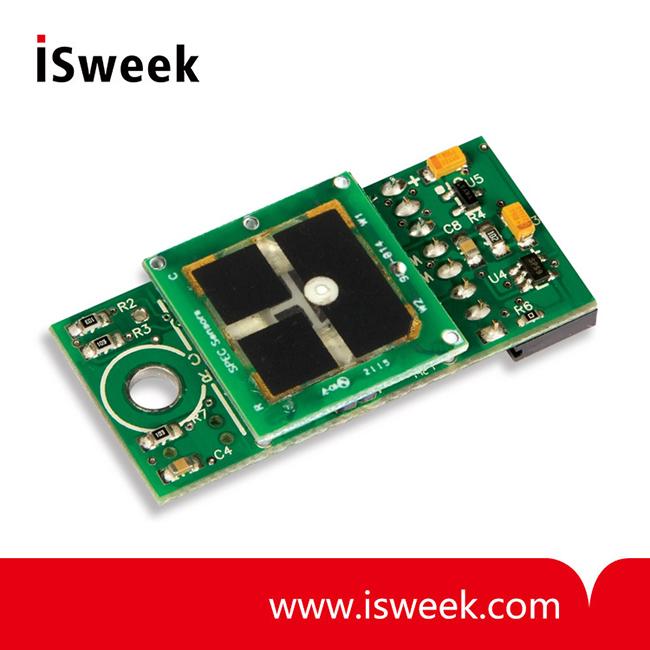

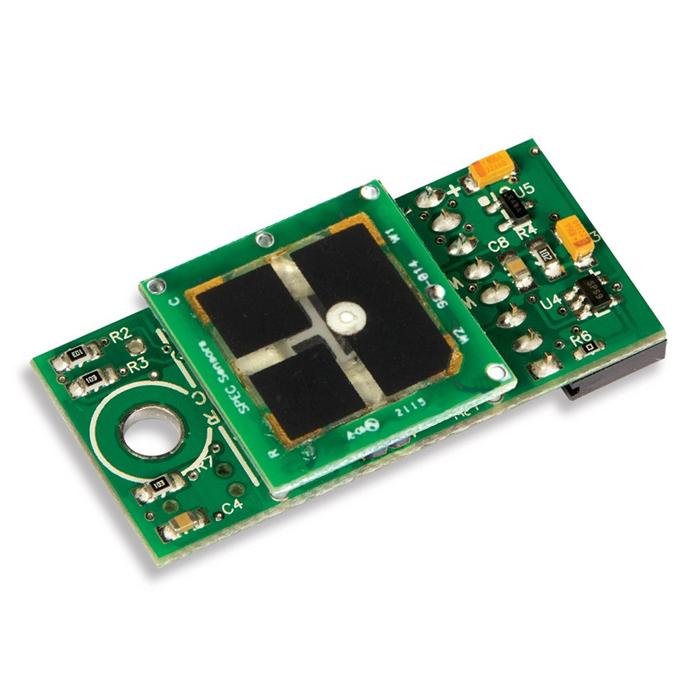

DGS-SO2 968-038 Digital SO2 Sensor Module DESCRIPTION
Easily add SO2 sensing to your IoT application with our Sulfur Dioxide digital gas sensor module that provides a calibrated and temperature compensated output.
0 to 20 ppm SO2 sensor with digital output.
DGS-SO2 968-038 Digital SO2 Sensor Module BENEFITS
• Low Power – 1 mW @ 1 minute sampling
• Calibrated & Temp. Compensated Output
• Fast Response < 30 seconds
• Simple Digital UART Interface
• Integrated T & RH Sensors
• Robust 10-year Estimated Lifetime
• ROHS Compliant
• Small form Factor
• UART to USB adapter provided
• Lightweight (< 2 oz.)
DGS-SO2 968-038 Digital SO2 Sensor Module APPLICATIONS
• Air Purification Control
• Air Quality Monitoring
• Industrial Safety Sensing
DGS-SO2 968-038 Digital SO2 Sensor Module MEASUREMENT PERFORMANCE CHARACTERISTICS
Based on Standard Conditions 25 ºC, 50% RH and 1 atm
Easily add SO2 sensing to your IoT application with our Sulfur Dioxide digital gas sensor module that provides a calibrated and temperature compensated output.
0 to 20 ppm SO2 sensor with digital output.
DGS-SO2 968-038 Digital SO2 Sensor Module BENEFITS
• Low Power – 1 mW @ 1 minute sampling
• Calibrated & Temp. Compensated Output
• Fast Response < 30 seconds
• Simple Digital UART Interface
• Integrated T & RH Sensors
• Robust 10-year Estimated Lifetime
• ROHS Compliant
• Small form Factor
• UART to USB adapter provided
• Lightweight (< 2 oz.)
DGS-SO2 968-038 Digital SO2 Sensor Module APPLICATIONS
• Air Purification Control
• Air Quality Monitoring
• Industrial Safety Sensing
DGS-SO2 968-038 Digital SO2 Sensor Module MEASUREMENT PERFORMANCE CHARACTERISTICS
Based on Standard Conditions 25 ºC, 50% RH and 1 atm
|
Measurement Range |
0 to 20 ppm |
|
Resolution |
50 ppb |
|
Measurement Accuracy |
15% of reading |
|
Measurement Repeatability |
< ± 3% of reading |
|
T90 Response Time (100 ppm step) |
< 30 seconds |
|
Power Consumption |
1 mW for 1 minute triggered samples 12 mW for continuous sampling 5, 10 30, 60 second intervals |
|
Expected Operating Life |
> 5 years (10 years @ 25± 10C; 60 ± 30% RH) |
|
Operating Temperature Range |
-20 to 40 °C (-30 to 55 °C intermittent) |
|
Operating Humidity Range |
15 to 95% (0 to 100% non-condensing intermittent) |
|
Mechanical Dimensions |
1.75 x 0.82 x 0.35 in. (44.5 x 20.8 x 8.9 mm) |
|
Weight |
< 2 Ounces |
