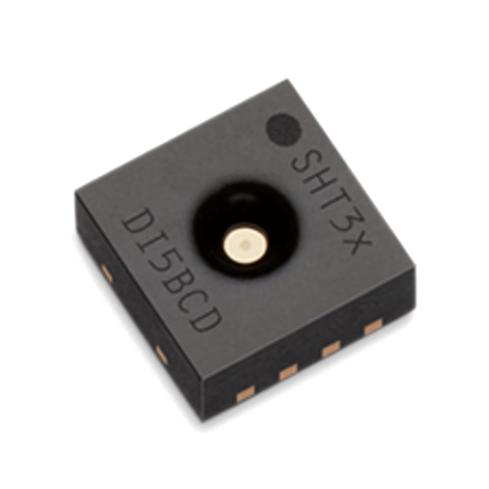

Digital Output Humidity and Temperature Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    SHT35-DIS

  • Data Sheet

  • Package

    Original packaging

  • Specs

    SHT35-DIS

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

SHT35-DIS Digital Output Humidity and Temperature Sensor Product Summary
SHT3x-DIS is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMOSens® sensor chip that is at the heart of Sensirion’s new humidity and temperature platform. The SHT3x-DIS has increased intelligence, reliability and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, two distinctive and user selectable I2C addresses and communication speeds of up to 1 MHz. The DFN package has a footprint of 2.5 x 2.5 mm 2 while keeping a height of 0.9 mm. This allows for integration of the SHT3x-DIS into a great variety of applications. Additionally, the wide supply voltage range of 2.4 V to 5.5 V guarantees compatibility with diverse assembly situations. All in all, the SHT3x-DIS incorporates 15 years of knowledge of Sensirion, the leader in the humidity sensor industry.

SHT35-DIS Digital Output Humidity and Temperature Sensor FEATURES
• Fully calibrated, linearized, and temperature compensated digital output
• Wide supply voltage range, from 2.4 V to 5.5 V
• I2C Interface with communication speeds up to 1 MHz and two user selectable addresses
• Typical accuracy of ±1.5 %RH and ±0.1 °C for SHT35
• Very fast start-up and measurement time
• Tiny 8-Pin DFN package

SHT35-DIS Digital Output Humidity and Temperature Sensor SENSOR PERFORMANCE
Humidity Sensor Specification

Parameter
 Conditions
 Value
 Units
SHT35 Accuracy tolerance
 Typ.
 ±1.5
 %RH
Max.
 Figure 4
 -
Repeatability
 Low
 0.25 %RH
Medium
 0.15 %RH
High
 0.10 %RH
Resolution
 Typ.
 0.01 %RH
Hysteresis
 at 25°C
 ±0.8
 %RH
Specified rang
 extended
 0 to 100
 %RH
Response time
 τ63%
 8 s
Long-term drift
 Typ.
 <0.25
 %RH/yr


Temperature Sensor Specification
Parameter
 Condition
 Value
 Units
SHT35 Accuracy tolerance
 typ., 20°C to 60°C
 ±0.1
 °C
Repeatability
 Low
 0.24
 °C
Medium
 0.12
 °C
High
 0.06 °C
Resolution
 Typ.
 0.015
Specified Range - -40 to 125
 °C
Response time
 τ63%
 >2
 s
Long Term Drift
 Max.
 <0.03
 °C/yr


SHT35-DIS Digital Output Humidity and Temperature Sensor Other Series:

Series

Typ. Humidity

Accuracy %RH

Typ. Temperature

Accuracy °C

Supply Voltage Range V

Interface

Package Size

(L x W x H) mm

SHT30 ±2 ±0.2 2.4 to 5.5 I2C, analog voltage 2.5 x 2.5 x 0.9
SHT31 ±2 ±0.2 2.4 to 5.5 I2C, analog voltage 2.5 x 2.5 x 0.9
SHT35 ±1.5 ±0.1 2.4 to 5.5 I2C 2.5 x 2.5 x 0.9
SHTW1
 ±3
 ±0.4
 1.62 to 1.98
 I2C
 1.3 x 0.7 x 0.5
SHTW2 ±3 ±0.4 1.62 to 1.98 I2C 1.3 x 0.7 x 0.5
SHTC1 ±3 ±0.3 1.62 to 1.98 I2C 2 x 2 x 0.8
SHT20 ±3 ±0.3 2.1 to 3.6 I2C, PWM, SDM 3 x 3 x 1.1
SHT21 ±2 ±0.3 2.1 to 3.6 I2C, PWM, SDM 3 x 3 x 1.1
SHT25 ±1.8 ±0.2 2.1 to 3.6 I2C 3 x 3 x 1.1
SHT10* ±4.5 ±0.5 2.4 to 5.5 Digital Sbus 7.5 x 4.9 x 2.6
SHT11*

±3

±0.4 2.4 to 5.5 Digital Sbus 7.5 x 4.9 x 2.6
SHT15* ±2 ±0.3 2.4 to 5.5 Digital Sbus 7.5 x 4.9 x 2.6
SHT71 ±3 ±0.4 2.4 to 5.5 Digital Sbus 19.5 x 5.08 x 3.1
SHT75 ±1.8 ±0.3 2.4 to 5.5 Digital Sbus 19.5 x 5.08 x 3.1
*Not recommended for new design (NRND); newer products available
