Product Description

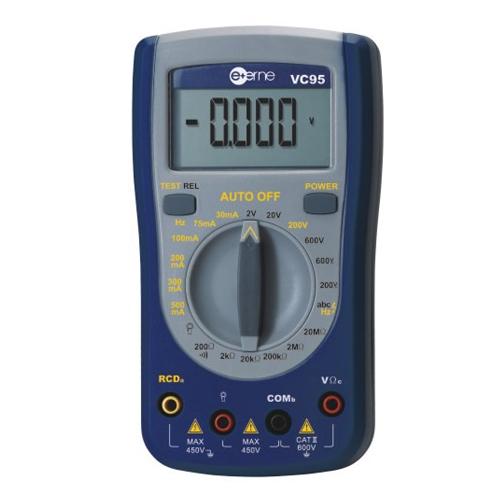

VC95 Digital Multimeter General Feature
• 3 1/2 digit display, 2000 count resolution
• Voltage/ Current measurements
• RCD check
• Resistance measurement and continuity test
• Current selection with OC (optical coupler), an technology adopted initiatively to run the 30mA~500mA leakage-switch test.
• Distinguishing phase sequence
• Measuring power frequency
• Measures AC/DC High-current with an optional current clamp accessory
• Relative value measurement(REL)
VC95 Digital Multimeter Accessories
1 x Test lead set, 1 x Zip oxford bag, 1 x RCD tie-line, 3 AAA x batteries, 1 x user's manual
Dimension: 148 x 78 x 35mm
Weight: 250g (include batteries)
VC95 Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resolution |
Accuracy |
|
DC Voltage |
2V/20V/200V/600V |
1mV |
±(1.5%+3d) |
|
AC Voltage |
200V/600V |
1mV |
±(1.5%+3d) |
|
Resistance |
200/2k/20k/2M/20MΩ |
100mΩ |
±(0.8%+3d) |
|
Leakage switch |
30/75/100/200/300/500mA |
S=0.2S~0.4S |
±(3%+3d) |
|
Frequency |
400Hz |
0.1Hz |
±(1%+1d) |
|
Phase |
ABC/ACB |
Positive/Negative |
50V~450V |
