Product Description

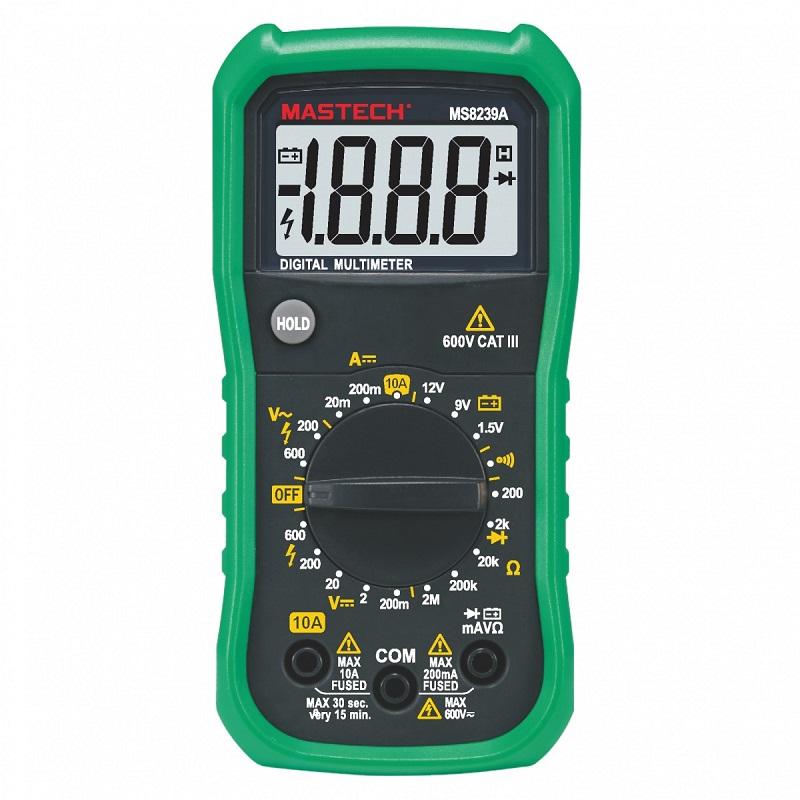

MS8239A Digital Multimeter
The MS8239A is a small hand-held, salf and reliable 3.5" digital multimeter with stable performance and novel structure. It can be used to measure DC voltage, DC current, resistance, diode forward voltage drop, circuit continuity and to rest batteries. It is an ideal mainrenance tool easily carried by a large number of users.
MS8239A Digital Multimeter Overview
• Power Supply: 2*1.5V AAA Batteries
• Product Size: 150mm*74mm*41mm / 5.9"*2.9"*1.6"
• Product Weight: 202g/0.441lb
• Order Ref. Number: MS8239AC15L
• Safety Rating: CE(EMC+LVD) CAT III 600V
MS8239A Digital Multimeter Features
• Display: 2000 counts• Diode: 2.5V
• Continuity Buzzer: <60Ω
• Data hold
• Low Battery Display
MS8239A Digital Multimeter Specification
|
Specification |
Range |
Accuracy |
| DC Voltage | 200mV/2V/20V/200V | ±(0.5%+3) |
| 600V | ±(0.8%+3) | |
| AC Voltage | 200V/600V | ±(1.2%+10) |
| DC Current | 20mA/200mA | ±(1.0%+5) |
| 10A | ±(2.0%+10) | |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ | ±(0.8%+5) |
| Battery Test | 1.5V/9V/12V |
