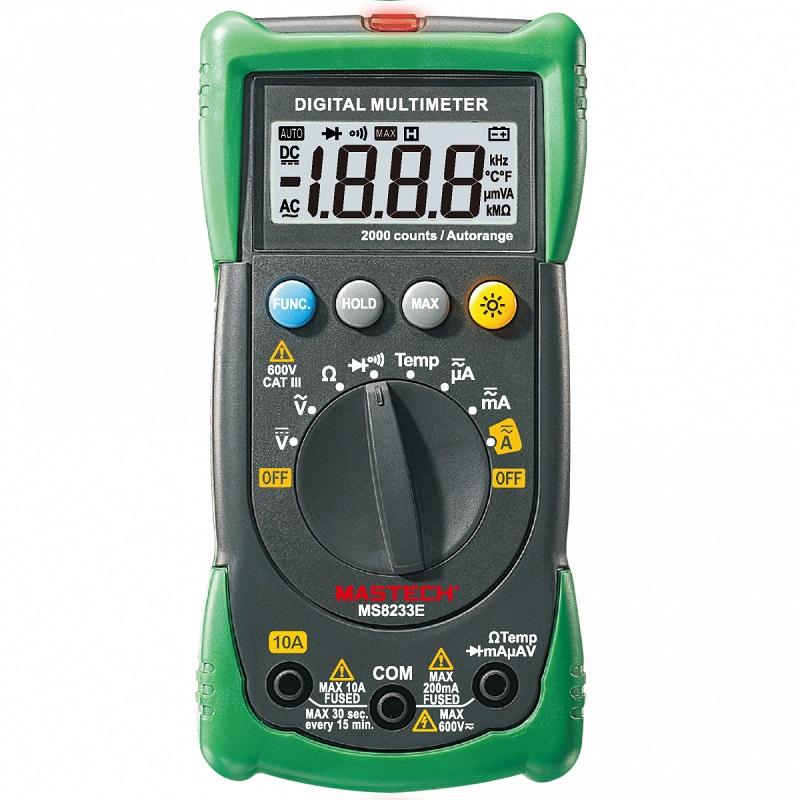

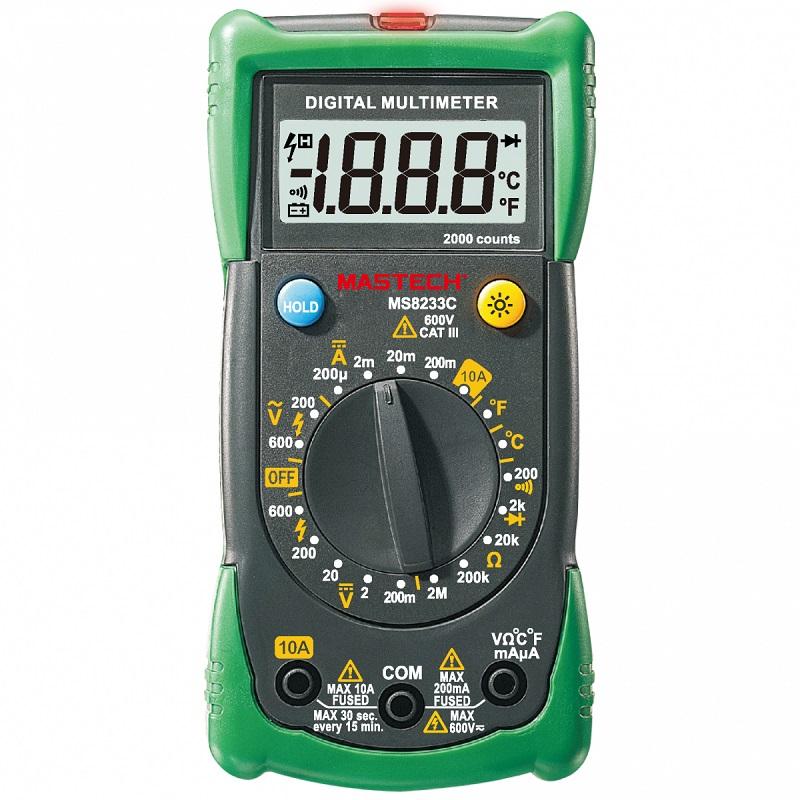

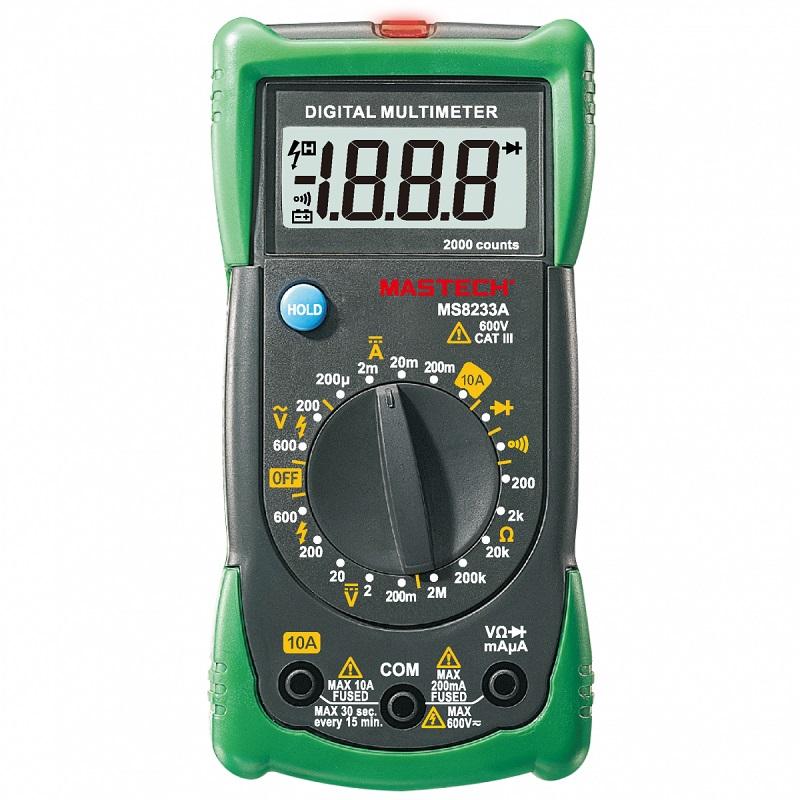

Digital Multimeter MS8233A
-
Price
Price on request ≥1piece
-
Model Number
MS8233B/MS8233C/MS8233E -
Data Sheet
-
Package
Original packaging -
Specs
MS8233B/MS8233C/MS8233E -
Quantity
- +Send Inquiry
Find Similar Products
-
Pen-type Digital Multimeter
Model Number：MS8211/MS8211D
MOQ：1
-
Digital Insulation Tester
Model Number：MS5203/MS5203A
MOQ：1
-
Pocket Digital Multimeter
Model Number： M300
MOQ：1
-
True RMS Benchtop Digital Multimeter
Model Number：M9803R
MOQ：1
-
Digital Multimeter
Model Number：MAS830/MAS830B/MAS830L
MOQ：1
-
Digital Multimeter
Model Number：MAS838
MOQ：1
Product Description
Digital Multimeter Safety information
This multimeter has been designed according to IEC61010-1 conerning electronic measuring instruments with an overvoltage category (CAT III) and pollution 2.
Follow all safety and operating instructions to ensure that the meter is used safely and is kept in good operating condition.
Full compliance with safety standards can be guaranteed only with test leads supplied. If necessary, they must be replaced with the type specified in this manual.
Digital Multimeter Specification
Accuracy is specified for a period of one year after calibration and at 18°C to 28°C (64°F to 82°F) with relative humidity to 80%.
Digital Multimeter Features
This multimeter has been designed according to IEC61010-1 conerning electronic measuring instruments with an overvoltage category (CAT III) and pollution 2.
Follow all safety and operating instructions to ensure that the meter is used safely and is kept in good operating condition.
Full compliance with safety standards can be guaranteed only with test leads supplied. If necessary, they must be replaced with the type specified in this manual.
Digital Multimeter Specification
Accuracy is specified for a period of one year after calibration and at 18°C to 28°C (64°F to 82°F) with relative humidity to 80%.
|
Spec |
Features |
Accuracy |
|||
| MS8233A |
MS8233B |
MS8233C |
MS8233E |
||
|
DC Voltage |
200mV/2V/20V/200V/600V |
|
|
|
±(0.5%+2) |
|
200mV/2V/20V/200V |
±(0.5%+3) |
±(0.5%+3) |
±(0.5%+3) |
|
|
|
600V |
±(0.5%+3) |
±(0.5%+3) |
±(0.5%+3) |
±(0.8%+2) |
|
|
AC Voltage |
2V/20V/200V/600V |
|
|
|
±(1.2%+10) |
|
200V/600V |
±(1.2%+10) |
±(1.2%+10) |
±(1.2%+10) |
|
|
|
DC Current |
200μA/2mA/20mA/200mA |
±(1.0%+3) |
±(1.0%+3) |
±(1.0%+3) |
±(1.5%+4) |
| 10A |
±(3.0%+5) |
±(3.0%+5) |
±(3.0%+5) |
±(1.5%+3) |
|
|
AC Current |
200μA/2mA/20mA/200mA |
|
|
|
±(1.5%+4) |
|
10A |
|
|
|
±(1.5%+4) |
|
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(0.8%+4) |
±(0.8%+4) |
±(0.8%+4) |
±(0.8%+4) |
|
Temperature(°C/F°) |
-20 ~ 1000°C |
|
|
±(2.0%+2) |
±(3.0%+3) |
| -4 ~ 1832°F |
|
|
±(2.0%+4) |
±(3.0%+6) |
|
Digital Multimeter Features
|
Features |
Item |
MS8233A |
MS8233B |
MS8233C |
MS8233E |
| Display | count | 2000 | 2000 | 2000 | 2000 |
| Autorange |
|
|
|
|
• |
| NCV | non-contact voltage detection |
|
• |
• |
• |
| Diode |
|
3.0V |
3.0V |
3.0V |
1.5V |
|
Continuity |
|
<60Ω |
<60Ω |
<60Ω |
<70Ω |
| Data Hold |
|
• |
• |
• |
• |
|
Display Backlight |
|
|
• |
• |
• |
| MAX |
|
|
|
|
• |
