Product Description

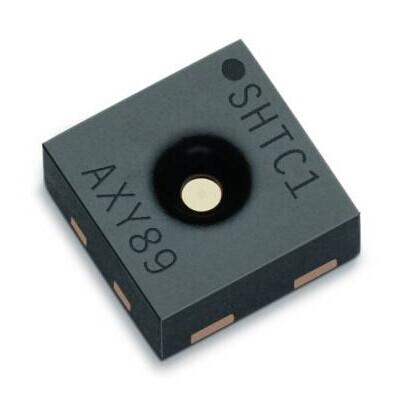

SHTC1 Digital Humidity and Temperature Sensor Product Summary
The SHTC1 is a digital humidity and temperature sensor designed especially for high-volume consumer electronics applications. This sensor is strictly designed to overcome conventional limits for size, power consumption, and performance to price ratio in order to fulfill current and future requirements. Sensirion’s CMOSens ® technology offers a complete sensor system on a single chip, consisting of a capacitive humidity sensor, a bandgap temperature sensor, analog and digital signal processing, A/D converter, calibration data memory, and a digital communication interface supporting I2C fast mode. The ultra-small, 2 × 2 × 0.75 mm 3 DFN package enables applications in even the most limited of spaces.

The sensor covers a humidity measurement range of 0 to 100 %RH and a temperature measurement range of –30 to 100 °C with a typical accuracy of ±3 %RH and ±0.3°C. The operation voltage of 1.8 V and an energy budget below 1 µJ per measurement make the SHTC1 suitable for mobile or wireless applications running on the tightest power budgets. With the industry-proven quality and reliability of Sensirion’s humidity and temperature sensors and constant accuracy over a large measurement range, the SHTC1 offers an unprecedented performance-to-price ratio. Tape and reel packaging together with suitability for standard SMD assembly processes make the SHTC1 predestined for high-volume applications.

SHTC1 Digital Humidity and Temperature Sensor FEATURES
• Best performance-to-price ratio
• Fully calibrated and reflow solderable
• Ultra-low power consumption
• Power-up and measurement within 1 ms
• 1.8 V supply voltage
• Ultra-small DFN package: 2 × 2 × 0.75 mm3
• Typical accuracy: ±3 %RH and ±0.3 °C

SHTC1 Digital Humidity and Temperature Sensor Specifications
Relative Humidity

Parameter
 Conditions
 Value
 Units
Accuracy tolerance
 Typ.
 ±3.0
 %RH
Max.
 see Figure 2
 %RH
Repeatability
 - 0.1 %RH
Resolution
 - 0.01 %RH
Hysteresis
 - ±1
 %RH
Specified range
 extended
 0 to 100
 %RH
Response time
 τ63%
 8
 s
Long-term drift
 Typ.
 <0.25
 %RH/y


Temperature
Parameter
 Conditions
 Value
 Units
Accuracy tolerance
 Typ.
 ±0.3
 °C
Max.
 see Figure 3
 °C
Repeatability
 - 0.1 °C
Resolution
 - 0.01 °C
Specified range
 - -30 to +100
 °C
Response time
 τ63%
 <5 to 30
 s
Long-term drift
 Normal range
 <0.02
 °C/y



Other Series:

Series

Typ. Humidity

Accuracy %RH

Typ. Temperature

Accuracy °C

Supply Voltage Range V

Interface

Package Size

(L x W x H) mm

SHT30 ±2 ±0.2 2.4 to 5.5 I2C, analog voltage 2.5 x 2.5 x 0.9
SHT31 ±2 ±0.2 2.4 to 5.5 I2C, analog voltage 2.5 x 2.5 x 0.9
SHT35 ±1.5 ±0.1 2.4 to 5.5 I2C 2.5 x 2.5 x 0.9
SHTW1
 ±3
 ±0.4
 1.62 to 1.98
 I2C
 1.3 x 0.7 x 0.5
SHTW2 ±3 ±0.4 1.62 to 1.98 I2C 1.3 x 0.7 x 0.5
SHTC1 ±3 ±0.3 1.62 to 1.98 I2C 2 x 2 x 0.8
SHT20 ±3 ±0.3 2.1 to 3.6 I2C, PWM, SDM 3 x 3 x 1.1
SHT21 ±2 ±0.3 2.1 to 3.6 I2C, PWM, SDM 3 x 3 x 1.1
SHT25 ±1.8 ±0.2 2.1 to 3.6 I2C 3 x 3 x 1.1
SHT10* ±4.5 ±0.5 2.4 to 5.5 Digital Sbus 7.5 x 4.9 x 2.6
SHT11*

±3

±0.4 2.4 to 5.5 Digital Sbus 7.5 x 4.9 x 2.6
SHT15* ±2 ±0.3 2.4 to 5.5 Digital Sbus 7.5 x 4.9 x 2.6
SHT71 ±3 ±0.4 2.4 to 5.5 Digital Sbus 19.5 x 5.08 x 3.1
SHT75 ±1.8 ±0.3 2.4 to 5.5 Digital Sbus 19.5 x 5.08 x 3.1
*Not recommended for new design (NRND); newer products available
