Differential Pressure Transducer
-
Price
Price on request ≥1piece
-
Model Number
CS-PT500 -
Data Sheet
-
Package
Original packaging -
Specs
CS-PT500 -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description
CS-PT500

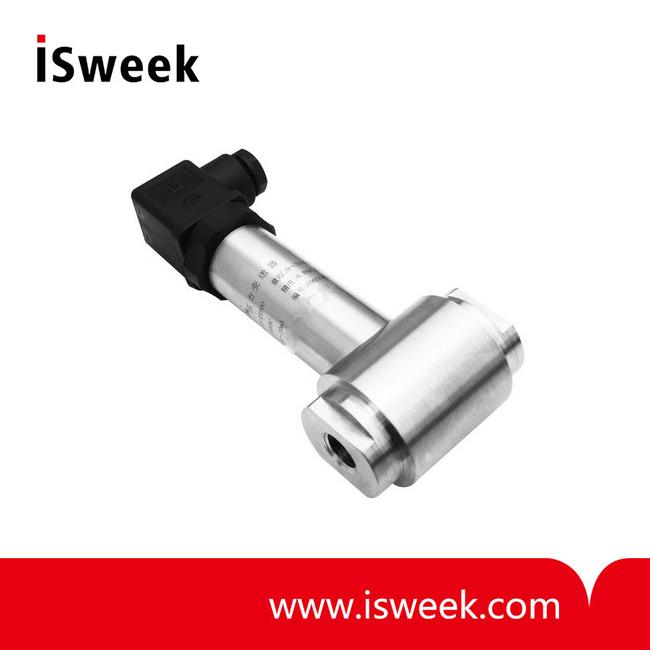

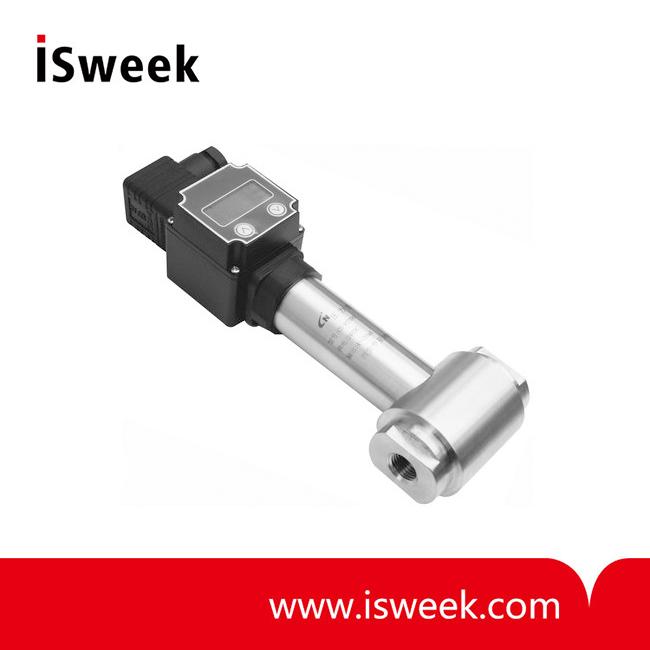

Differential Pressure Transducer
CS-PT500 Differential Pressure TransducerTechnical parameters
|
The routine |
Numerical |
|
Range |
0…+5KPa…+5000KPa |
|
Overload |
1.5 times |
|
Static pressure |
three/ five/ten times，20MPa |
|
Accuracy |
0.25%,0.5% |
|
Working temperature |
-40℃-85℃ |
|
Output |
4-20mA, 0/1-5V, 0-10V |
|
Power |
10-30VDC, 8-36VDC/AC,11-30VDC/AC |
|
Port |
M20×1.5,G1/2, G1/4 |
