Differential Pressure Sensor with Analogue Output
-
Price
Price on request ≥1piece
-
Model Number
SPD102SAhyb -
Data Sheet
-
Package
Original packaging -
Specs
SPD102SAhyb -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description

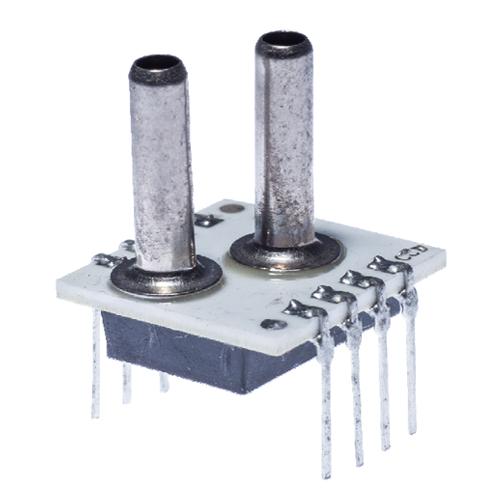

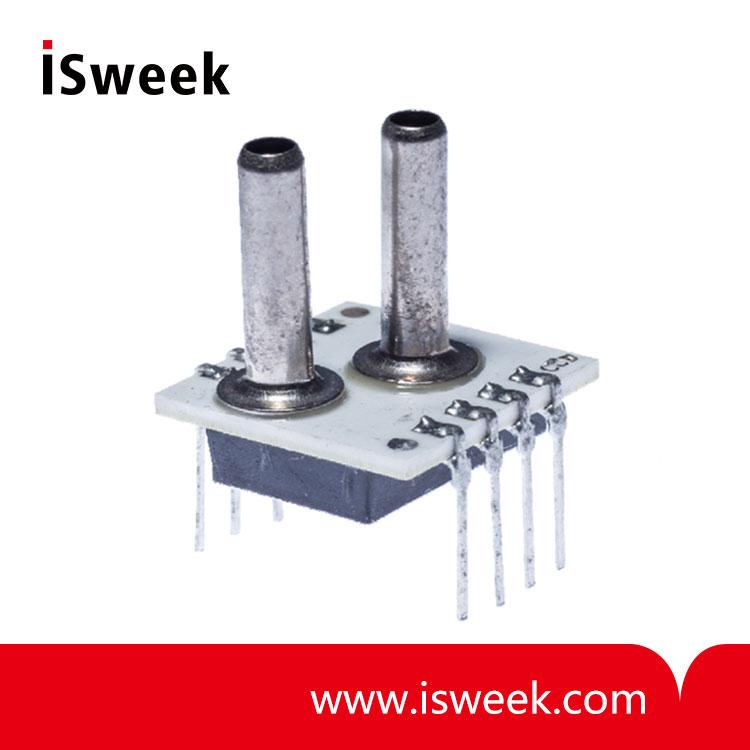

Special Low Pressure Range Differential Sensor With Analogue Output (Single Version)
This Smartec differential pressure sensor has an amplified analogue output. The sensor is compensated for offset, sensitivity, temperature drift and nonlinearity. The sensor has a range of 0.15 PSI FS and the output is ratiometric to the power supply voltage. Other pressure ranges on request ( 0.3 - 100 PSI). When no pressure is applied output Voltage is minimal; single type.
SPD102SAhyb Differential Pressure Sensor Electrical Characteristics
Performance Characteristic at Vcc =5V excitation @ 25 °C|
Parameter |
Min |
Typ |
Max |
Units |
|
Supply Voltage |
4.75 |
5.00 |
5.25 |
V |
|
Supply Current |
- |
2.5 |
|
mA |
|
Pressure range (fs) |
0 |
|
0.15 |
psi |
|
Zero Output |
0.412 |
0.500 |
0.588 |
Vdc@0psi |
|
Span Output (FS) |
|
4.00 |
|
Vdc@0.15psi |
|
Response time |
|
1 |
2 |
ms |
|
Linearity |
-0.5 |
|
+0.5 |
%FS |
|
Thermal Hysteresis |
-0.15 |
|
+0.15 |
%FS |
|
Accuracy |
|
|
+2.2 |
%FS |
|
Temp coeff. Span |
-2 |
|
+2 |
%FS |
|
Pressure overload |
|
|
3X |
rating |
|
Temp compensation |
0 |
|
50 |
°C |
|
Operating Temp range |
-10 |
|
70 |
°C |
|
Storage temperature |
-40 |
|
125 |
°C |
It is advised to place a 100nF capacitor between Vcc and Gnd
Wetted materials are: Pyrex glass, RTV, Ceramic, Nickel and Silicon
The output is ratiometric to Vcc
