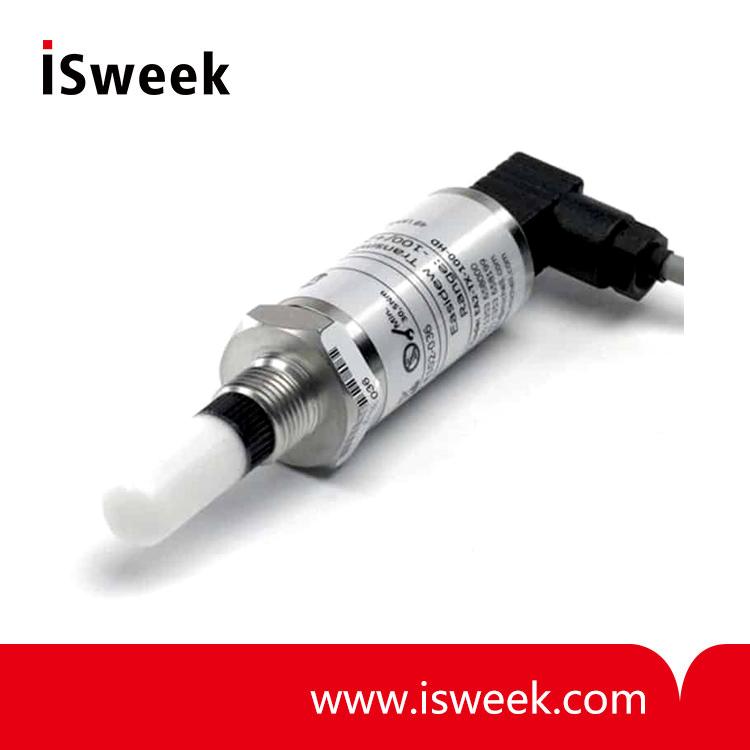

Dew Point Sensor - Extreme Dry Air
-
Price
Price on request ≥1piece
-
Model Number
VPA.8000.1003 -
Data Sheet
-
Package
Original packaging -
Specs
VPA.8000.1003 -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description
VPA.8000.1003 Dew Point Sensor Product Description
VPInstruments’ dew point transmitters are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible. The calibrated transmitters can be instantly incorporated into VPVision or they can be connected to your air or gas management and control system.
Maintaining the dew point of your air or gas system will prolong the life of your equipment. Permanent monitoring enables you to detect and prevent problems in time.
VPA.8000.1003 Dew Point Sensor Features and benefits
2-wire loop powered connection
Dew point or ppm moisture content
IP66 (NEMA 4X)
Excellent sensor protection
Fast response time
VPA.8000.1003 Dew Point Sensor Application
Extreme dry air
VPA.8000.1003 Dew Point Sensor Specifications
VPInstruments’ dew point transmitters are designed for ease of use, incorporating all the features needed to make installation and operation as simple as possible. The calibrated transmitters can be instantly incorporated into VPVision or they can be connected to your air or gas management and control system.
Maintaining the dew point of your air or gas system will prolong the life of your equipment. Permanent monitoring enables you to detect and prevent problems in time.
VPA.8000.1003 Dew Point Sensor Features and benefits
2-wire loop powered connection
Dew point or ppm moisture content
IP66 (NEMA 4X)
Excellent sensor protection
Fast response time
VPA.8000.1003 Dew Point Sensor Application
Extreme dry air
VPA.8000.1003 Dew Point Sensor Specifications
|
Performance |
|
|
Measurement range |
-100 ... +20°C | -148 ... 68 °F dew point |
|
Accuracy (dew point) |
±2°C | ±3.6 °F dew point |
|
Response time |
5 mins to T95 (dry to wet) |
|
Electrical output/input |
|
|
Output signa |
4 ... 20 mA (2-wire) current source, configurable over the entire range |
|
Supply voltage |
12-28VDC |
|
Current consumption |
20mA max |
|
Supply voltage influence |
±0.005% RH/V |
|
operating conditions |
|
|
Operating humidity |
0 ... 100% RH |
|
Operating temperature |
-40 ... +60°C | -40 ... 140 °F |
|
Operating pressure |
450 barg max. |
|
Temperature coefficient |
Temperature compensated across operating temperature range |
|
Mechanical specifications |
|
|
Ingress protection |
IP65 | NEMA 4 |
|
Housing material |
Stainless steel |
|
Dimensions |
L=132mm x ø27mm | 5,2 x 1,1" |
|
Filter |
HDPE Guard <10 μm |
|
Process connection |
5/8" - 18 UNF |
|
Connection |
DIN connector |
