Product Description

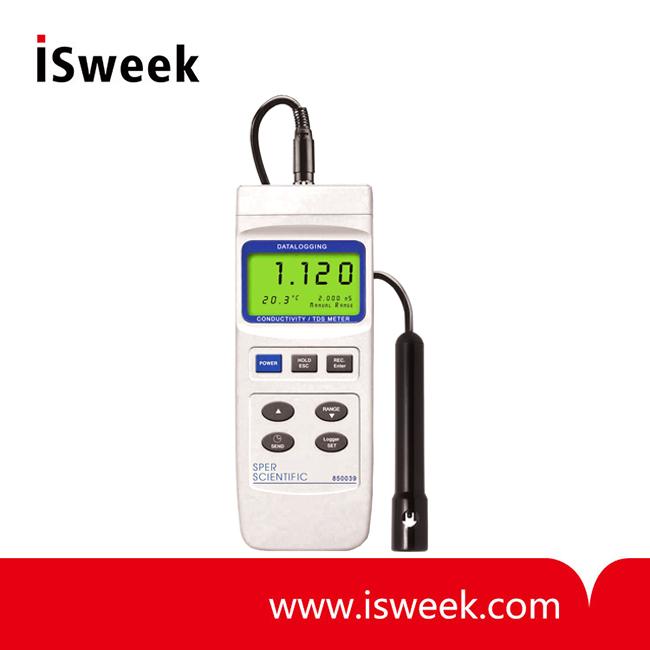

Datalogging Conductivity/TDS Meter
Records data in the plant or field for later computer storage and analysis
Automatically records up to 16,000 data points in the field along with time and date. These can later be downloaded to a computer via the meter's USB port and the results viewed instantly on software which comes with the unit. The software also enables real-time datalogging directly from the meter to the computer. Simultaneously displays conductivity or TDS and temperature. A user adjustable ATC coefficient enables absolute (non-temperature compensated) measurements, as well as accurate measurements in solutions other than water. Features manual or auto-range, min/max, calendar/clock, auto power off, and hold function. This well-made unit has a detachable probe, fold-out easel back, and a large, easy-to-read LCD. Comes ready to use in a protective foam-lined carrying case, complete with probe, 4 AA batteries, and one 3V button cell battery.
Dim: 8" x 3" x 1½" (203 x 76 x 38 mm).
Weight: 10 oz (283 g).
850039 Datalogging Conductivity/TDS Meter Specifications
Records data in the plant or field for later computer storage and analysis
Automatically records up to 16,000 data points in the field along with time and date. These can later be downloaded to a computer via the meter's USB port and the results viewed instantly on software which comes with the unit. The software also enables real-time datalogging directly from the meter to the computer. Simultaneously displays conductivity or TDS and temperature. A user adjustable ATC coefficient enables absolute (non-temperature compensated) measurements, as well as accurate measurements in solutions other than water. Features manual or auto-range, min/max, calendar/clock, auto power off, and hold function. This well-made unit has a detachable probe, fold-out easel back, and a large, easy-to-read LCD. Comes ready to use in a protective foam-lined carrying case, complete with probe, 4 AA batteries, and one 3V button cell battery.
Dim: 8" x 3" x 1½" (203 x 76 x 38 mm).
Weight: 10 oz (283 g).
850039 Datalogging Conductivity/TDS Meter Specifications
|
Unit of Measure |
Range |
Resolution |
Accuracy |
|
Conductivity |
0 to 200.0 μS |
0.1 μS |
±(2%FS +1d) |
|
0.2 to 2.000 mS |
0.001 mS |
||
|
2 to 20.00 mS |
0.01 mS |
||
|
20 to 200.0 mS |
0.1 mS |
||
|
TDS |
0 to 132 ppm |
0.1 ppm |
|
|
132 to 1,320 ppm |
1 ppm |
||
|
1,320 to 13,200 ppm |
10 ppm |
||
|
13,200 to 132,000 ppm |
100 ppm |
||
|
Temperature °C |
0 to 60°C |
0.1° |
0.8°C |
|
Temperature °F |
32 to 140°F |
1.5°F |
