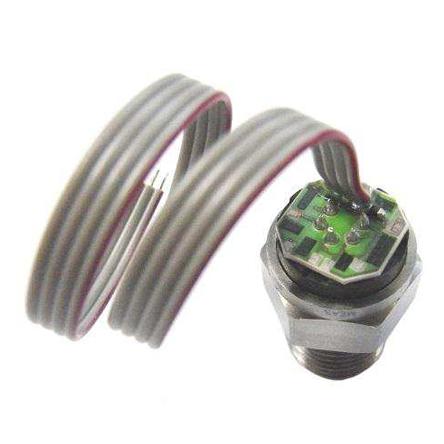

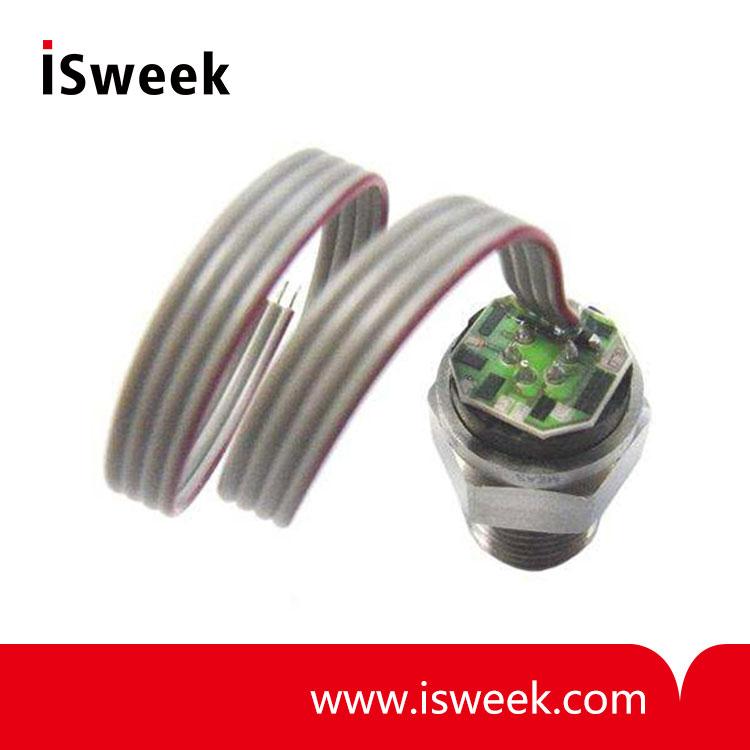

Constant Voltage Pressure Sensor
-
Price
Price on request ≥1piece
-
Model Number
MEAS 89CV -
Data Sheet
-
Package
Original packaging -
Specs
MEAS 89CV -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description
89
Constant Voltage
89CV Pressure Sensor Specification
• 316L SS Pressure Sensor
• High Pressure
• 0 - 100mV Output
• Absolute and Sealed Gage
The 89 constant voltage is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 89 constant voltage features 5/16-32 UNEF threads and can be welded in place. It can also be packaged in a variety of threaded fittings such as 1/4 and 1/8NPT, 1/4BSP as well as custom process fittings. Contact factory for threaded fitting options.
The 89 constant voltage is designed for high pressure OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction.
Please refer to the 89 uncompensated and compensated datasheets for more information on different features of the 89.
89CV Pressure Sensor Features
• Threaded Process Fittings or O-Ring Mount
• -40ºC to +125ºC Operating Temperature Range
• ±0.25% Pressure Non Linearity
• Solid State Reliability
89CV Pressure Sensor Applications
• Hydraulic Controls
• Process Control
• Pressure Calibrators
• Refrigeration/Compressors
Constant Voltage
89CV Pressure Sensor Specification
• 316L SS Pressure Sensor
• High Pressure
• 0 - 100mV Output
• Absolute and Sealed Gage
The 89 constant voltage is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. The 89 constant voltage features 5/16-32 UNEF threads and can be welded in place. It can also be packaged in a variety of threaded fittings such as 1/4 and 1/8NPT, 1/4BSP as well as custom process fittings. Contact factory for threaded fitting options.
The 89 constant voltage is designed for high pressure OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicon oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction.
Please refer to the 89 uncompensated and compensated datasheets for more information on different features of the 89.
89CV Pressure Sensor Features
• Threaded Process Fittings or O-Ring Mount
• -40ºC to +125ºC Operating Temperature Range
• ±0.25% Pressure Non Linearity
• Solid State Reliability
89CV Pressure Sensor Applications
• Hydraulic Controls
• Process Control
• Pressure Calibrators
• Refrigeration/Compressors
89CV Pressure Sensor Performance Specification
Ambient Temperature: 25°C (unless otherwise specified)
|
PARAMETERS |
MIN |
TYP |
MAX |
UNITS |
|
Full Scale Output Span |
98 | 100 | 102 |
mV |
|
Zero Pressure Output |
-1.0 |
|
1.0 |
mV |
|
Pressure Non Linearity |
-0.25 |
|
0.25 |
%Span |
|
Pressure Hysteresis |
-0.1 |
±0.05 |
0.1 |
%Span |
|
Input Resistance |
5500 | 9000 | 12500 |
Ω |
|
Output Resistance |
4000 |
|
6000 |
Ω |
|
Temperature Error - Span |
-0.1 |
±0.05 |
0.1 |
%Span |
|
Temperature Error - Zero |
-0.1 |
±0.05 |
0.1 |
%Span |
|
Thermal Hysteresis - Span |
-0.25 |
|
0.25 |
%Span |
|
Thermal Hysteresis - Zero |
-0.25 |
|
0.25 |
%Span |
|
Long Term Stability - Zero/Span |
|
±0.1 |
|
%Span/yr |
|
Supply Voltage |
|
10 | 14 | V |
|
Output Load Resistance |
5 |
|
|
MΩ |
|
Insulation Resistance (50Vdc) |
50 |
|
|
MΩ |
|
Pressure Overload |
|
|
3X |
Rated |
|
Pressure Burst |
|
|
4X |
Rated |
|
Operating Temperature |
-40 |
|
+125 |
°C |
|
Compensated Temperature Range |
-20 |
|
+85 |
°C |
|
Storage Temperature |
-50 |
|
+125 |
°C |
|
Media - Pressure Port |
Liquids and Gases compatible with 316/316L Stainless Steel |
|||
