Product Description

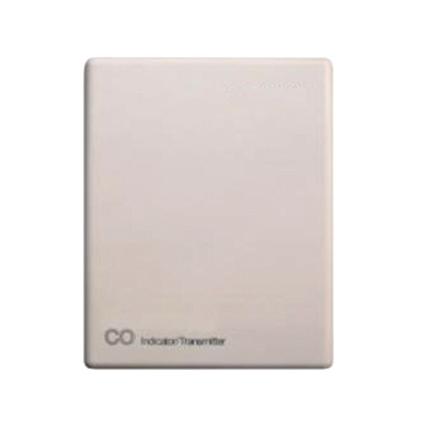

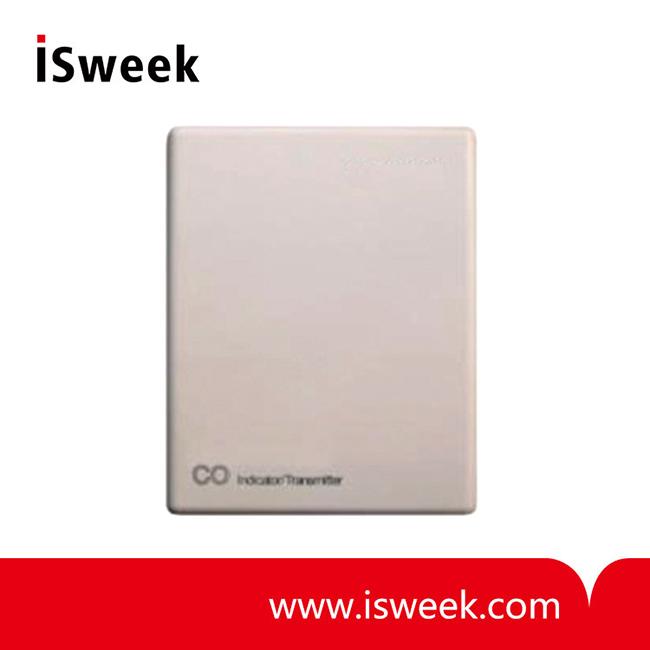

Carbon Monoxide Detector And Transmitter
Model#: F2000TSM-CO-C101


  • Real time detect and transmit ambiance carbon monoxide level
  • Up to more than five years lifetime
  • 1x analog output for linear measurement
  • Modbus RS485 interface
  • The highest performance with the lowest price


F2000TSM-CO-C101 Carbon Monoxide Detector and Transmitter Description

F2000TSM-CO-C101 is specifically designed to detect and transmit carbon monoxide level in the enclosed or semi-enclosed car parks and to regulate the environment according to the measurement of carbon monoxide. It is designed for easy installation and minimum maintenance during operation.


F2000TSM-CO-C101 Carbon Monoxide Detector and Transmitter Features
• Wall mounting, real time detect CO level with measuring range of 0~100ppm/ 0~200pm/ 0~500ppm.
• Electrochemical sensor which offer several advantages over traditional electrochemicalsensors.
• With a long life, good long term stability, and high accuracy, the CO sensor is environmentally friendly without risk of electrolyte leakage.
• With simple calibration
• The special design of easy sensor's replacement makes customers replace sensor easily by themselves
• Full time CO level detection, even the slightest leak can be detected
• One analog output of the measurement of carbon monoxide  concentration  with  0~10V/4~20mA selectable
• Special built-in Self-Zero Correction algorithm.
• Modbus RS-485 communication with 15KV antistatic protection, also can be calibrated carbon monoxide measurement via the interface


F2000TSM-CO-C101 Carbon Monoxide Detector and Transmitter Application
• Residential and commercial CO detectors and transmitters
• Ventilation control for indoor parking garages
• Recreational vehicle CO detectors
• Kitchen rooms and restaurants
• Freezing machine rooms and other places where air quality is easy to worsen


F2000TSM-CO-C101 Carbon Monoxide Detector and Transmitter Specifications

CO Measurement
Gas detected
 Carbon monoxide
Sensing element
 Battery operable electrochemical sensor
Gas sample mode
 Diffusion
Warm up time
 1hour (first time)
Response Time
 Within 60 seconds
Signal Update
 1s
CO Measuring Range
 0~100ppm(default)
0~200ppm/0~500ppm selectable
Accuracy
 <±1ppm (at 20±5°C/ 50±20%RH)
Stability
 ± 5% (over 900 days)
Electrical
Power Supply
 24VAC/VDC
Consumption
 1.5 W
Wiring connections
 5 terminal blocks (max.)
Outputs
Linear analog output
 1x0~10VDC/4~20Ma selectable in order
D/A resolution
 16 bit
D/A conversion accuracy
 0.1ppm
Modbus RS485
Communication interface
 Modbus RS485 interface
9600/14400/19200(default), 28800 bps, 38400 bps (programmable
selection), 15KV antistatic protection
General Performance
Operation temperature
 0~60°C (32~140°F)
Operation humidity
 5~99%RH, non condensing
Storage conditions
 0~50°C (32~122°F)
Net Weight
 190g
Dimensions
 100mm x 80mm x 28mm
Installation standard
 65mm x 65mm or 2" x 4" junking box
Housing and IP class
 PC/ABS fireproof plastic material, protection class: IP30
Compliance
 EMC Directive 89/336/EEC


Carbon Monoxide Detector and Transmitter Models

ITEM MODEL
 DESCRIPTION
Carbon Monoxide
Transmitter
 F2000TSM-CO-C001
 Carbon monoxide transmitter with
Modbus RS485 communication interface
Carbon Monoxide
Transmitter
 F2000TSM-CO-C101-V/A
 Carbon monoxide transmitter with one 0~10VDC/4~20mA output.
Modbus RS485 communication interface

CO range (postfix after the model):
001:       0~100ppm (default)
002:       0~200ppm
005:       0~500ppm
