Product Description

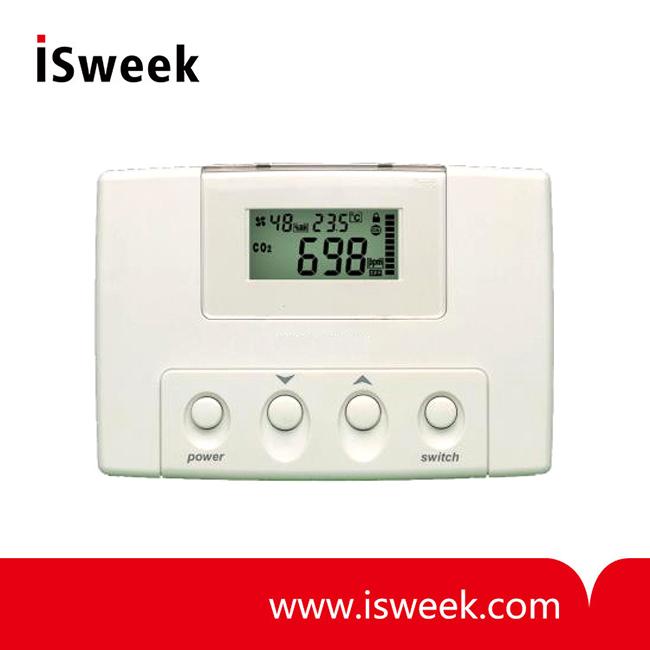

Carbon Dioxide Monitor and Controller
Model: F2000IAQ-CO2
CE Approva


F2000IAQ-CO2 Carbon Dioxide Monitor and Controller Features
• Multiple functions and high performance with low prices
• Wall mounting type and duct type selectable
• LCD display detecting both CO 2 level and temperature, also relative humidity (optional)
• NDIR infrared CO 2 module inside with special ABC Logic Self Calibration System. It makes the CO2 measurement more accurate and more reliable in use.
• 15 years lifetime of CO 2 sensor
• Microprocessor control, quick response, high precision
• Provide up to three 0~10VDC outputs or relay dry contact outputs, or up to three mix outputs.
• The analog output with two alternatives: linearized over full range output or PID control output
• Different control mode for delays can be selected by user’s application, for example for ventilation or for greenhouse or other applications.
• CO2 range: 0~5,000ppm or 0~20,000ppm;
• Modbus RS-485 communication interface optional, 15KV antistatic protection, independent base address setting
• CE-Approval



F2000IAQ-CO2 Carbon Dioxide Monitor and Controller Application
F2000IAQ-CO2 monitor/controller is used to monitoring and control room CO2 level, as well as room temperature and humidity, provide one or two or three 0~10VDC analog outputs and up to three dry contact outputs . F2000IAQ-CO2 can be as a programmable logical controller to control CO2 level, temperature or humidity, and also as a transmitter DDC/PLC controller or other automation systems. It provides a RS485 communication interface with an independent address to PC or other control systems.

   • Hotel, exhibition hall, hospital, shop, restaurant, air port, train station, theater and other public places
   • House, villa, office, meeting room, classroom and other places
   • Greenhouse, mushroom, grown room and other agricultural applications
   • All ventilation systems


F2000IAQ-CO2 Carbon Dioxide Monitor and Controller Specifications

Gas detected
 Carbon Dioxide (CO2)
CO2 Sensor
 Non-Dispersive Infrared Detector (NDIR) with more than 10 years lifetime
Temperature sensor
 NTC
Humidity sensor
 HS series capacitive sensor
Temperature dependence
 0.2% FS/°C
Temperature correction
 Self compensation
Power supply
 24VAC/VDC, or 100~240VAC, 60HZ, selectable with the order
Consumption
 3.5 W max. ; 2.5 W avg.
Accuracy@25°C(77°F)
 ±40ppm + 3% of reading (0~5000ppm)
±75ppm or 10% reading whichever is greater (0~20,000ppm or 0~50,000ppm)
Stability
 <2% of FS over life of sensor (15 yr typical)
Calibration interval
 ABC Logic Self Calibration Algorithm
Non linearity
 <1% of FS
Pressure dependence
 0.13% of reading per mm Hg
Altitude calibration
 Programmable from 0-9,900m in 100m increments
Response Time
 <2 minutes for 90% step change
Signal update
 Every 2 seconds
Warm up time
 2 hours (first time)
2 minutes (operation)
CO2 measuring range
 0~5,000ppm
0~20,000ppm or 0~50,000ppm optional
CO2 setting & Display resolution
 1ppm
Temperature measuring/ setting range
 0~50°C(32~122°F)/ 5~45°C(41~113°F)
Humidity measuring/setting range
 0~99%RH/ 5~95%RH non condensation
Analog output
 0~10VDC linearized output or PID control output, selectable by end users
Output resolution
 10Bit
Relay output
 One or two dry contact outputs with programmable selection to control CO2, temperature, humidity
Rated switching current: 2A(220VAC/30VDC), resistance load
Communication interface
 Modbus RS-485, 9600/14400/19200(default)/28800 or 38400bps (programmable
selection), 15KV antistatic protection, 3 independent base address
Operation conditions
 0~50°C(32~122°F); 0~95%RH
Storage conditions
 0~50°C(32~122°F); 5~90%RH non condensing
Weight
 360g
Dimensions
 130mm x 90mm x 40mm
Installment standard
 65mm x 65mm or 2" x 4" wire box
Interface connections
 Maxi. 9 terminals
Wiring standard
 wire section area <1.5mm2
Approval Standard
 CE-Approval
Programming and selection
 Via internal jumpers and push-buttons on the panel


F2000IAQ-CO2 Carbon Dioxide Monitor and Controller Models Guide

F2000IAQ-CO2-X1 X2 Y1 Y2- RH-Z
X1
 (the product type)

3-  CO2 and temperature detection
5-  CO  and temperature detection with Modbus RS-485 communication
X2
 (display type)

0-  LCD display
2-  Backlit LCD display
Y1
 (Analog output)

0-  no analog output
1-  1 X 0 – 10 VDC output
2-  2 X 0 – 10 VDC outputs
3-  3 X 0 – 10 VDC outputs
Y2
 (Dry contact output)

0-  no dry contact output
1-  1 relay dry contact output
2-  2 relay dry contact outputs
3-  3 relay dry contact outputs
RH
 (Humidity detection and display)

No RH option indicates no humidity detection and display
Z
 (power supply)

C- 24VAC/VDC
D- 100~240VAC (just for IAQ-CO2-300Y2/500Y2)


Example:


F2000IAQ-CO2-3011 indicates that it can detect CO2 and temperature with one analog output and one relay
dry contact output. F2000AQ-CO2-5002-RH indicates that it can detect CO2 and temperature and humidity
with two relays dry contact outputs, and Modbus RS485 communication
