Capacitive Temperature and Humidity Sensor
-
Price
Price on request ≥1piece
-
Model Number
HTS2230SMD -
Data Sheet
-
Package
Original packaging -
Specs
HTS2230SMD -
Quantity
- +Send Inquiry
Find Similar Products
-
Miniature Digital Relative Humidity and Temperature Sensor
Model Number：HTU21D
MOQ：1
-
Probe Style Relative Humidity Sensor Module
Model Number：HM1500LF
MOQ：1
-
Capacitive Humidity Sensor
Model Number：HS1101/HS1101LF
MOQ：1
-
Voltage Output Temperature and Humidity Sensor
Model Number：HTG3515CH
MOQ：1
-
Humidity and Temperature Sensor Module
Model Number：HTG3535CH
MOQ：1
-
Voltage Output Humidity and Temperature Sensor Module
Model Number：HTG3835PVBL
MOQ：1
Product Description

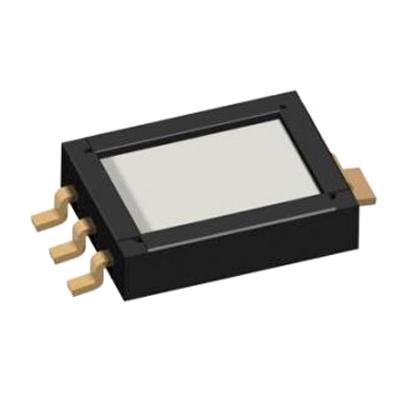

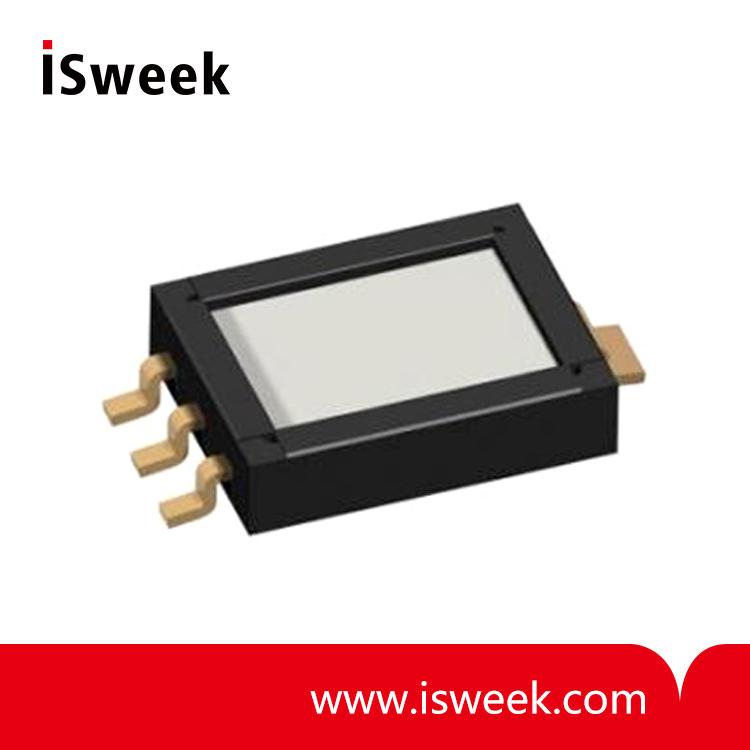

HTS2230SMD Capacitive Temperature and Humidity Sensor DESCRIPTION
Based on a unique capacitive cell for humidity measurement and a Negative Temperature Coefficient (NTC) thermistor for temperature measurement, this dual-purpose relative humidity / temperature miniaturized sensor is designed for high volume, cost sensitive applications with tight space constraints. It is useful in all applications where dew point, absolute humidity measurements or humidity compensation are required. HTS2230SMD Capacitive Temperature and Humidity Sensor FEATURES
• Operating Temperature: -60 to 140°C
• Humidity Measuring Range: 1 to 99 %RH
• Part may be washed with distilled wate
• Instantaneous desaturation after long periods in saturation phase
• Individual marking for compliance to stringent traceability requirements
• Fulll interchangeability with no calibration required in standard conditions
• Compatible with automatized assembly processes, including Pb free wave soldering and reflow processes
HTS2230SMD Capacitive Temperature and Humidity Sensor APPLICATIONS
• Automotive
• Home Appliance
• Printers
• Meteorology
