Capacitive Humidity Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

Further advantages of the K5-W capacitive RH sensors include:

• Fast recovery time

• Very stable at low humidity

• Condensation resistant

• High chemical resistance

• Very low drift

• Wide temperature range

• Customer-specific sensor available upon request

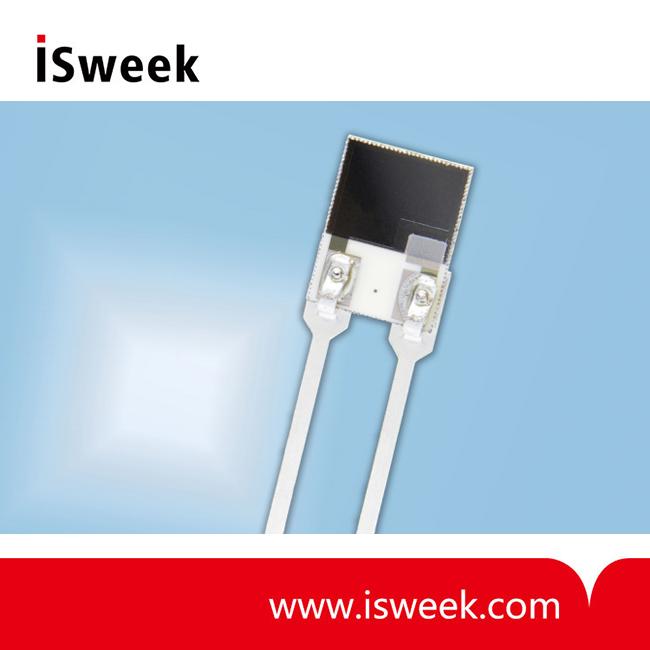

The IST AG K5-W humidity sensor is available with CuP-SIL wire post-plated with Sn as standard configuration.

Illustration¹⁾：

Technical Data:

Dimensions (L x W x H / H2 in mm)	5.0 x 3.81 x 0.4 / 1.2
Operating humidity range	0 % RH to 100 % RH
Operating temperature range	-40℃ to +150℃
Capacitance (C₃₀)*	200 pF ±50 pF (at 30 % RH and +23℃)
Sensitivity (at C₃₀ = 200 pF)	0.4 pF/% RH (15 % RH to 90 % RH)
Loss factor	< 0.01 (at 23℃, at 10 kHz, at 90 % RH)
Linearity error	< 1.5 % RH (15 % RH to 90 % RH at +23℃ after one point calibration)
Hysteresis	< 1.5 % RH
Response time t₆₃	< 5 s (50 % RH to 0 % RH at +23℃)
Temperature dependence (typical)	∆ % RH = (B1 x % RH + B2) x T [℃] + (B3 x % RH + B4) B1 = 0.00004 [1/℃] B2 = 0.1842 [% RH/℃] B3 = -0.0010 B4 = -4.2370 [% RH]
Measurement frequency	1 kHz to 100 kHz (recommended 10 kHz)
Maximal supply voltage	< 12 V_pp AC
Signal form	alternating signal without DC bias
Connection*	CuP-SIL wire post-plated with Sn, 10 mm

* Customer-specific alternatives available

The calibration of the sensor must be done 5 days after soldering at the earliest.
