BDS Series Basic Pressure Sensor
-
Price
Price on request ≥1piece
-
Model Number
BDS-L10D030A-N9 -
Data Sheet
-
Package
Original packaging -
Specs
BDS-L10D030A-N9 -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description

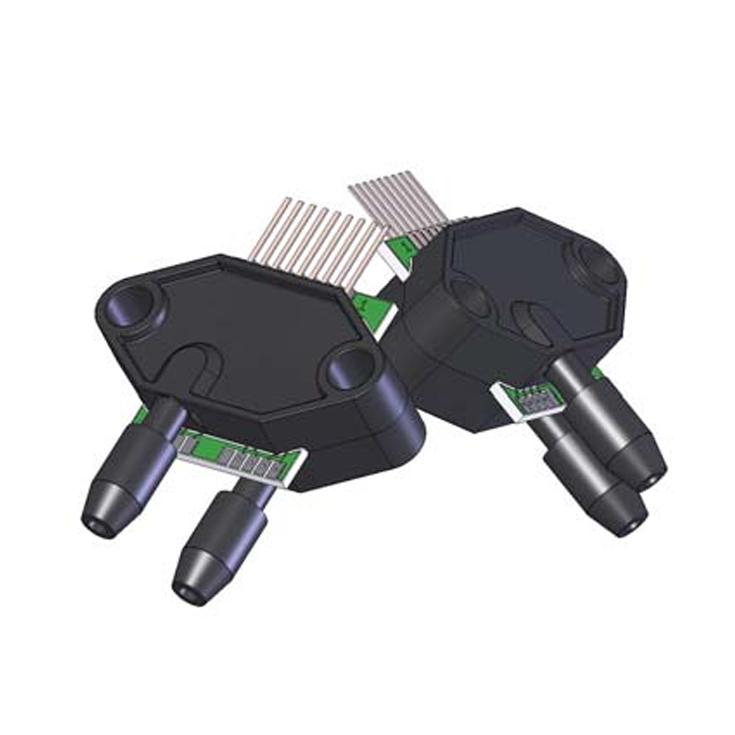

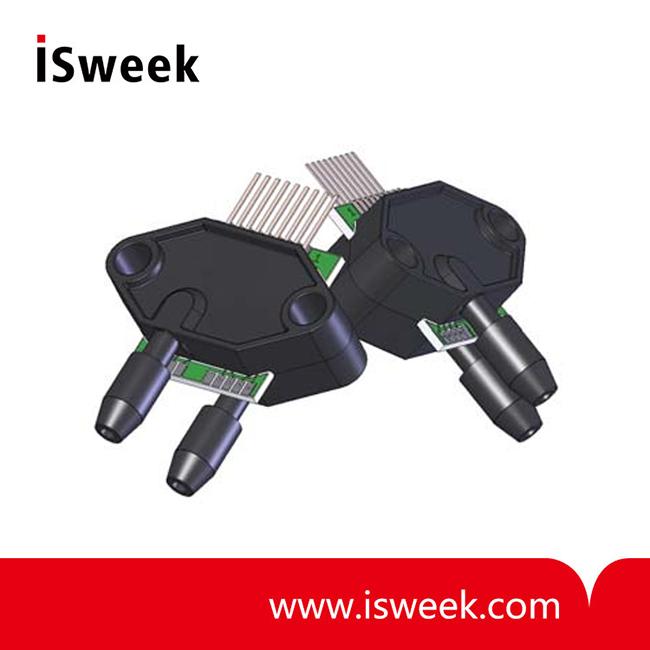

BDS Series Pressure Sensor General Description
The BDS Basic Pressure Sensor was designed with the idea of combining two sensing elements into one package. This sensor is designed to provide a precise fl ow measurement by combining a differential and absolute sensing element in the same package. By combining the differential and absolute sensing element, engineers can save cost and space in today's smaller devices.
The BASIC series pressure sensors are based upon a proprietary technology to reduce the size of the sensor and yet maintain a high level of performance. Output offset errors due to position sensitivity; packaging stress and long term drift are all signifi cantly reduced when compared to conventional silicon sensors. In addition, the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.
This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage.
BDS Series Pressure Sensor Features
• Dual Sensing Elements (Absolute & Differential)
• Top constraint absolute sensing element for helium applications
• Parylene coating available upon request
• RoHS Compliant
BDS Series Pressure Sensor Applications
• Gas Flow Measurement
BDS Series Basic Pressure Sensor
BDS Series Pressure Sensor Standard Pressure Range
BDS Series Pressure Sensor Ordering Information
The BDS Basic Pressure Sensor was designed with the idea of combining two sensing elements into one package. This sensor is designed to provide a precise fl ow measurement by combining a differential and absolute sensing element in the same package. By combining the differential and absolute sensing element, engineers can save cost and space in today's smaller devices.
The BASIC series pressure sensors are based upon a proprietary technology to reduce the size of the sensor and yet maintain a high level of performance. Output offset errors due to position sensitivity; packaging stress and long term drift are all signifi cantly reduced when compared to conventional silicon sensors. In addition, the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.
This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
The output of the device is ratiometric to the supply voltage.
BDS Series Pressure Sensor Features
• Dual Sensing Elements (Absolute & Differential)
• Top constraint absolute sensing element for helium applications
• Parylene coating available upon request
• RoHS Compliant
BDS Series Pressure Sensor Applications
• Gas Flow Measurement
BDS Series Basic Pressure Sensor
|
Pressure Sensor Characteristics Maximum Ratings |
|
Environmental Specifi cations |
||
|
Supply Voltage |
6 Vdc |
Operating Temperature |
-25 to 85 °C |
|
|
Lead Temperature (soldering 2-4 sec.) |
270°C |
Storage Temperature |
-40 to 125 °C |
|
|
|
|
Humidity Limits |
0 to 95% RH (non condensing) |
|
BDS Series Pressure Sensor Standard Pressure Range
|
Device Type |
Operating Pressure |
Nominal |
Std Dev. |
Units |
Proof Pressure |
Burst Pressure |
|
BDS-L10D030A |
-- |
-- |
-- |
-- |
-- |
-- |
|
Absolute |
0 - 30 PSIA |
7.5 |
±1.25 |
mV/PSI |
90 PSI |
150 PSI |
|
Differential |
0 - 10 inH2O |
3.0 |
±0.40 |
mV/inH2O |
15 PSI |
30 PSI |
|
BDS-L10D100A |
-- |
-- |
-- |
-- |
-- |
-- |
|
Absolute |
0 - 100 PSIA |
3.0 |
±0.28 |
mV/PSI |
150 PSI |
150 PSI |
|
Differential |
0 - 10 inH2O |
3.0 |
±0.40 |
mV/inH2O |
15 PSI |
30 PSI |
BDS Series Pressure Sensor Ordering Information
|
Part Number |
Confi guration |
||
|
Differential Sensor |
Absolute Sensor |
Package |
|
|
BDS-L10D030A-N9 |
10 inH2O |
30 PSIA |
N9 |
|
BDS-L10D100A-N9 |
10 inH2O |
100 PSIA |
N9 |
