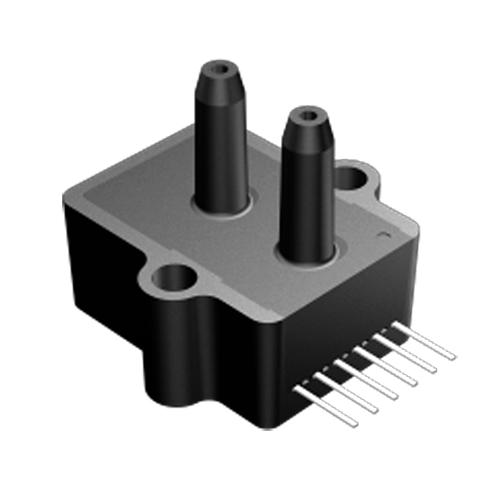

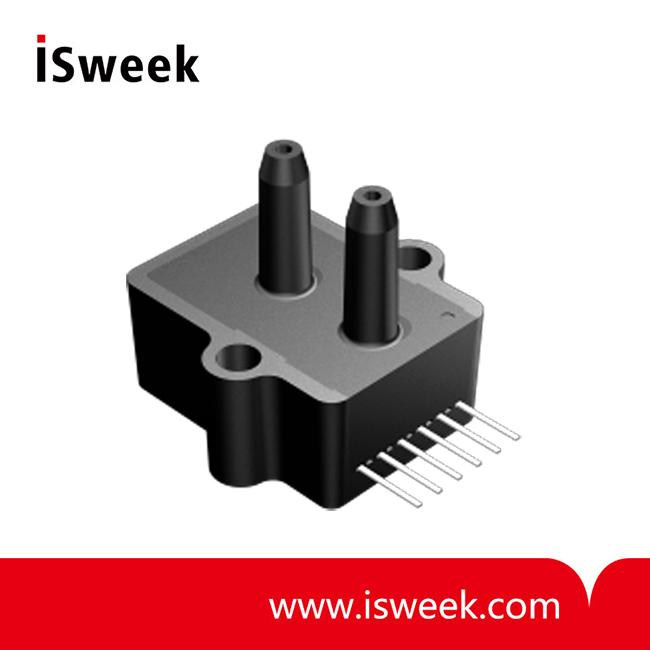

AXCA Series Barometric Amplified Pressure Sensors
-
Price
Price on request ≥1piece
-
Model Number
BARO-A-4V/BARO-A-4V-MIL -
Data Sheet
-
Package
Original packaging -
Specs
BARO-A-4V/BARO-A-4V-MIL -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description
Barometric Pressure Sensors
600 to 1,100 mbar Barometric Pressure
AXCA Series Barometric Amplified Pressure Sensors General Description
These Barometric pressure sensors are based upon a proprietary package technology to reduce errors. This model provides a fixed 4-volt output with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined (MEMS) structure to provide a very linear output to measured pressure. The sensor embodies a vacuum reference.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
AXCA Series Barometric Amplified Pressure Sensors Options
• Ratiometric Output
• Fixed 4V Output with internal Voltage Reference
• Temperature Compensated (-25 to 85°C, -40 to 125°C, 5 to 50°C)
• Calibrated Zero and Span
AXCA Series Barometric Amplified Pressure Sensors Applications
• Medical Instrumentation
• Environmental Controls
• Chemical Analysis
AXCA Series Barometric Amplified Pressure Sensors
AXCA Series Barometric Amplified Pressure Sensors Standard Pressure Ranges
600 to 1,100 mbar Barometric Pressure
AXCA Series Barometric Amplified Pressure Sensors General Description
These Barometric pressure sensors are based upon a proprietary package technology to reduce errors. This model provides a fixed 4-volt output with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined (MEMS) structure to provide a very linear output to measured pressure. The sensor embodies a vacuum reference.
These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.
AXCA Series Barometric Amplified Pressure Sensors Options
• Ratiometric Output
• Fixed 4V Output with internal Voltage Reference
• Temperature Compensated (-25 to 85°C, -40 to 125°C, 5 to 50°C)
• Calibrated Zero and Span
AXCA Series Barometric Amplified Pressure Sensors Applications
• Medical Instrumentation
• Environmental Controls
• Chemical Analysis
AXCA Series Barometric Amplified Pressure Sensors
|
Pressure Sensor Ratings |
|
Environmental Specifications |
||
|
Lead Temperature, max (soldering 2-4 sec.) |
250°C |
Compensated Temperature |
see below |
|
|
Burst Pressure |
60 psi |
Operating Temperature |
-40 to 125 °C |
|
|
|
|
Storage Temperature |
-40 to 125 °C |
|
|
|
|
Humidity Limits |
0 to 95% RH (non condensing) |
|
AXCA Series Barometric Amplified Pressure Sensors Standard Pressure Ranges
|
Part Number |
Operating Pressure |
Supply Voltage |
Compensated Temperature Range |
|
BARO-A-4V |
600 - 1100 mbar |
4.5 to 5.5 V |
5°C to 50°C |
|
BARO-A-4V-PRIME |
600 - 1100 mbar |
4.5 to 5.5 V |
-25°C to 85°C |
|
BARO-A-4V-MIL |
600 - 1100 mbar |
4.5 to 5.5 V |
-40°C to 125°C |
|
BARO-A-4V-PRIME-REF |
600 - 1100 mbar |
5.5 to 16 V |
-25°C to 85°C |
