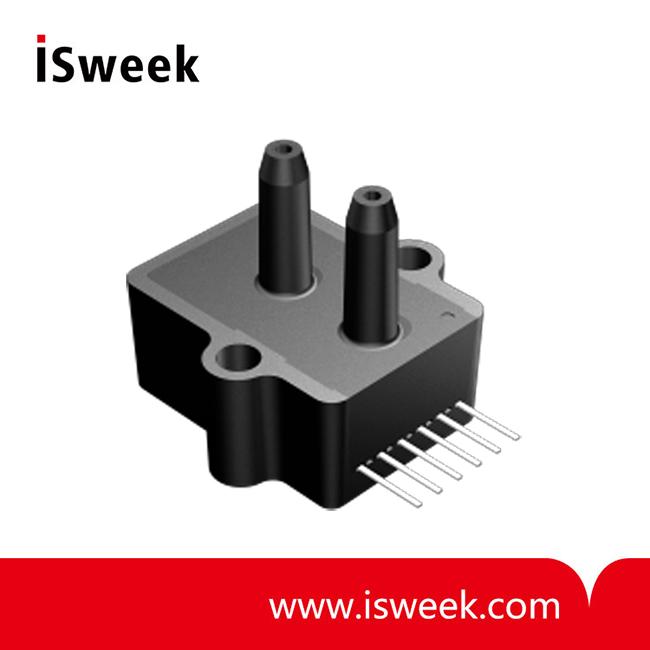

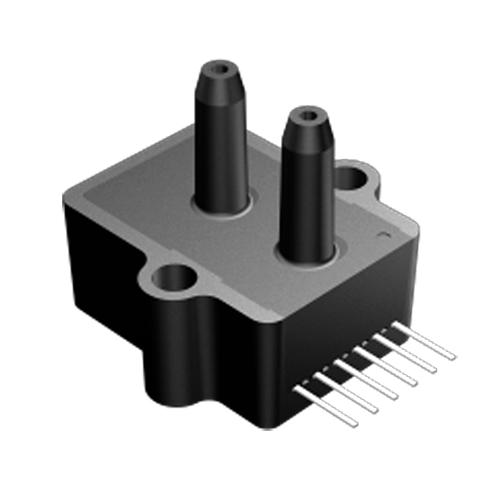

AXCA Series Amplified Middle Pressure Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    1 PSI-D-4V/1 PSI-G-4V

  • Data Sheet

  • Package

    Original packaging

  • Specs

    1 PSI-D-4V/1 PSI-G-4V

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

AXCA Series Amplified Middle Pressure Sensors General Description
The Amplified line of middle pressure sensors is based upon a proprietary package technology to reduce errors. This model provides a ratiometric 4-volt output with superior output characteristics. The sensor housing has been designed specifically to reduce package induced parasitic stress and strain. In addition the sensor utilizes a silicon, micromachined, stress concentration enhanced structure to provide a very linear output to measured pressure.

These calibrated and temperature compensated sensors give an accurate and stable output over a wide temperature range. Each sensor is internally compensated using an ASIC compensation technique. This series is intended for use with non-corrosive, non-ionic working fluids such as air, dry gases and the like.

The output of the device is ratiometric to the supply voltage over a supply voltage range of 4.5 to 5.5 volts.

AXCA Series Amplified Middle Pressure Sensors Features
• 0 to ±0.3 to 0 to 150 psi Pressure Ranges
• Ratiometric 4V Output
• Temperature Compensated
• Calibrated Zero and Span

AXCA Series Amplified Middle Pressure Sensors Applications
• Medical Instrumentation
• Environmental Instrumentation
• HVAC Instrumentation

AXCA Series Amplified Middle Pressure Sensors
Pressure Sensor Ratings
Environmental Specifications
Supply Voltage, Vs
 +4.5 to +5.5 Vdc
 Compensated Temperature
 5 to 50 °C
Common-mode pressure
 -10 to +10 psig
 Operating Temperature
 -25 to 85 °C
Lead Temperature, max (soldering 2-4 sec.)
 250°C
 Storage Temperature
 -40 to 125 °C


Humidity Limits
 0 to 95% RH (non condensing)

AXCA Series Amplified Middle Pressure Sensors Standard Pressure Ranges
Part Number
 Operating Pressure
 Nominal Span
 Proof Pressure
 Burst Pressure
0.3 PSI-D-4V
 ±0.3 PSI
 ±2 V
 5 PSI
 10 PSI
0.3 PSI-G-4V
 0 - 0.3 PSI
 4 V 5 PSI
 10 PSI
1 PSI-D-4V
 ±1 PSI
 ±2 V
 5 PSI
 10 PSI
1 PSI-G-4V
 0 - 1 PSI
 4 V 5 PSI
 10 PSI
2.5 PSI-D-4V
 ±2.5 PSI
 ±2 V
 10 PSI
 20 PSI
2.5 PSI-G-4V
 0 - 2.5 PSI
 4 V 10 PSI
 20 PSI
5 PSI-D-4V
 ±5 PSI
 ±2 V
 15 PSI
 30 PSI
5 PSI-G-4V
 0 - 5 PSI
 4 V 15 PSI
 30 PSI
15 PSI-A-4V
 0 - 15 PSIA
 4 V 45 PSI
 60 PSI
15 PSI-D-4V
 ±15 PSI
 ±2 V 45 PSI
 60 PSI
15 PSI-G-4V
 0 - 15 PSI
 4 V 45 PSI
 60 PSI
30 PSI-A-4V
 0 - 30 PSIA
 4 V 60 PSI
 60 PSI
30 PSI-D-4V
 ±30 PSI
 ±2 V
 60 PSI
 60 PSI
30 PSI-G-4V
 0 - 30 PSI
 4 V 60 PSI
 100 PSI
100 PSI-A-4V
 0 - 100 PSIA
 4 V 150 PSI
 150 PSI
100 PSI-D-4V
 ±100 PSI
 ±2 V
 150 PSI
 150 PSI
100 PSI-G-4V
 0 - 100 PSI
 4 V 150 PSI
 150 PSI
150 PSI-D-4V
 ±150 PSI
 ±2 V 200 PSI
 200 PSI
150 PSI-G-4V
 0 - 150 PSI
 4 V 200 PSI
 200 PSI
BARO-A-4V
 600 - 1100 mbarA
 4 V 45 PSI
 60 PSI
