Product Description

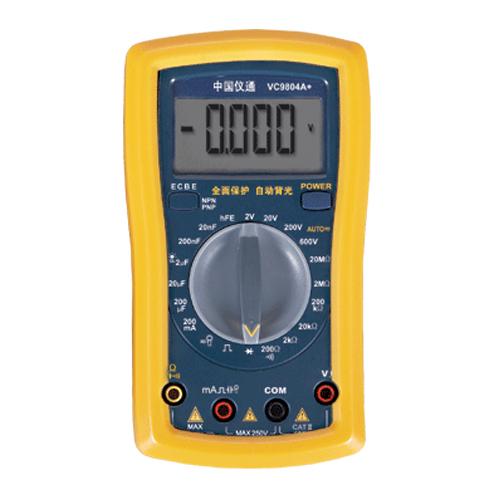

VC9804A+ Digital Multimeter General Feature
• 3 1/2 digit display, 2000 count resolution
• 20 measuring ranges
• AC/DC voltage auto-identification and measurements
• AC/DC 2KV high voltage measurement
• Current measurement (with external clamp accessory)
• Diode test and Continuity test
• Resistance and Capacitance measurements
• Square wave outputting function
• hFE measurement
• Auto backlight display
VC9804A+ Digital Multimeter Accessories
1 x Test leads set, 1 x yellow Holster, 3 AAA x batteries, 1 x user's manual
Dimension: 155 x 85 x 40mm
Weight: 250g (include batteries)
VC9804A+ Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Resolution |
Accuracy |
|
DC voltage |
2V20V/200V/600V |
1mV |
±(0.8%+3d) |
|
AC voltage |
2V20V/200V/600V |
1mV |
±(1.2%+3d) |
|
AC/DC current |
200mA |
10μA |
±(2%+5d) |
|
AC/DC high voltage |
2kV(200VX10) |
1V |
±(3%+5d) |
|
Resistance |
200/2k/20k/200k/2M/20MΩ |
100mΩ |
±(0.8%+3d) |
|
Capacitance |
20nF/200nF/2μF/20μF/200μF |
10pF |
±(3%+3d) |
|
Square wave output |
2kHz |
Duty 50% |
3Vp_p |
