Product Description

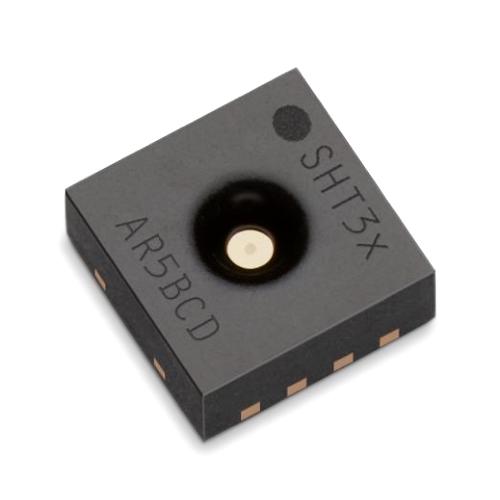

SHT30-ARP Analog Voltage Output Humidity and Temperature Sensor Product Summary
SHT3x-ARP is the next generation of Sensirion’s temperature and humidity sensors. It builds on a new CMOSens® sensor chip that is at the heart of Sensirion’s new humidity and temperature platform. The SHT3x-ARP has increased intelligence, reliability and improved accuracy specifications compared to its predecessor. Its functionality includes enhanced signal processing, temperature and humidity can be read out at different pins. The DFN package has a footprint of 2.5 x 2.5 mm2 while keeping a height of 0.9 mm. This allows for integration of the SHT3x-ARP into a great variety of applications. Additionally, the wide supply voltage range of 2.4 V to 5.5 V guarantees compatibility with diverse assembly situations. All in all, the SHT3x-ARP incorporates 15 years of knowledge of Sensirion, the leader in the humidity sensor industry.

SHT30-ARP Analog Voltage Output Humidity and Temperature Sensor FEATURES
• Fully calibrated, linearized, and temperature compensated analog output
• Wide supply voltage range, from 2.4 V to 5.5 V
• 10% to 90% ratiometric analog voltage output
• Typical accuracy of ±2%RH and ±0.3°C
• Parallel measurement of temperature and humidity at separate pins
• Tiny 8-Pin DFN package

SHT30-ARP Analog Voltage Output Humidity and Temperature Sensor SENSOR PERFORMANCE
Humidity Sensor Specification
Parameter
 Conditions
 Value
 Units
SHT30 Accuracy tolerance
 Typ.
 ±3
 %RH
Max.
 Figure 2
 -
Repeatability
0.1 %RH
Resolution
 Typ.
 0.01 %RH
Integrated Non-Linearity
 Typ.
 0.2 %RH
Hysteresis
 at 25°C
 ±0.8
 %RH
Specified rang
 extended
 0 to 100
 %RH
Response time
 τ63%
 8 s
Long-term drift
 Typ.
 <0.25
 %RH/yr
Sensitivity
 VDD=2.4V
 19.2 mV/%RH
VDD=3.3V
 26.4 mV/%RH
VDD=5.5V
 44.0 mV/%RH



Temperature Sensor Specification
Parameter
 Condition
 Value
 Units
SHT30 Accuracy tolerance
 Typ., 0°C to 65°C
 ±0.3
 °C
Repeatability
0.06
 °C
Resolution
 Typ.
 0.015
 °C
Specified Range - -40 to 125
 °C
Response time
 τ63%
 >2
 S
Long Term Drift
 Max.
 <0.03
 °C/yr
Sensitivity
 VDD=2.4V
 11.0
 mV/°C
VDD=3.3V
 15.1
 mV/°C
VDD=5.5V
 25.1
 mV/°C


Other Series:

Series

Typ. Humidity

Accuracy %RH

Typ. Temperature

Accuracy °C

Supply Voltage Range V

Interface

Package Size

(L x W x H) mm

SHT30 ±2 ±0.2 2.4 to 5.5 I2C, analog voltage 2.5 x 2.5 x 0.9
SHT31 ±2 ±0.2 2.4 to 5.5 I2C, analog voltage 2.5 x 2.5 x 0.9
SHT35 ±1.5 ±0.1 2.4 to 5.5 I2C 2.5 x 2.5 x 0.9
SHTW1
 ±3
 ±0.4
 1.62 to 1.98
 I2C
 1.3 x 0.7 x 0.5
SHTW2 ±3 ±0.4 1.62 to 1.98 I2C 1.3 x 0.7 x 0.5
SHTC1 ±3 ±0.3 1.62 to 1.98 I2C 2 x 2 x 0.8
SHT20 ±3 ±0.3 2.1 to 3.6 I2C, PWM, SDM 3 x 3 x 1.1
SHT21 ±2 ±0.3 2.1 to 3.6 I2C, PWM, SDM 3 x 3 x 1.1
SHT25 ±1.8 ±0.2 2.1 to 3.6 I2C 3 x 3 x 1.1
SHT10* ±4.5 ±0.5 2.4 to 5.5 Digital Sbus 7.5 x 4.9 x 2.6
SHT11*

±3

±0.4 2.4 to 5.5 Digital Sbus 7.5 x 4.9 x 2.6
SHT15* ±2 ±0.3 2.4 to 5.5 Digital Sbus 7.5 x 4.9 x 2.6
SHT71 ±3 ±0.4 2.4 to 5.5 Digital Sbus 19.5 x 5.08 x 3.1
SHT75 ±1.8 ±0.3 2.4 to 5.5 Digital Sbus 19.5 x 5.08 x 3.1
*Not recommended for new design (NRND); newer products available
