Product Description

MEAS U86B Analog Output Pressure Sensor Specifications
• Mountable with O-ring seal
• Stainless Steel wetted surfaces
• Amplified
• ASIC calibrated
• Absolute, sealed gage
• Cable option
• Analog output

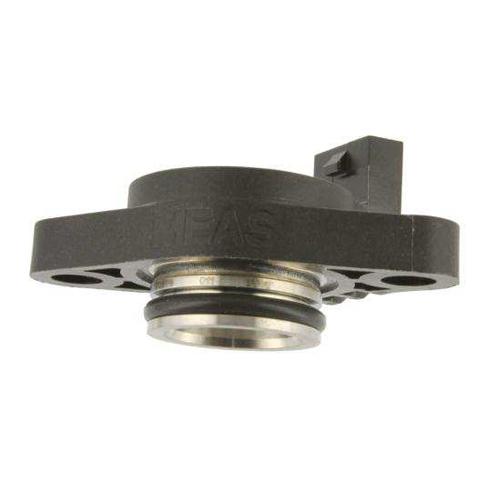

The U86B is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing and is designed for o-ring mounting. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element. The U86B is designed for high performance, low pressure applications. A custom ASIC is used for temperature compensation, offset correction, and provides an amplified output of 0.5 to 4.5V. CE approved and manufactured to TS16949 standards, this model may also come with a cable if desired. For a similar sensor without plastic housing, refer to the 86A. Or for a plastic threaded fitting, refer to the LM pressure transducer.

MEAS U86B Analog Output Pressure Sensor Features
• Mountable with O-ring seal
• ±0.5% Accuracy
• ±2.0 Total Error Band
• Cable option

MEAS U86B Analog Output Pressure Sensor Applications
• Urea level
• Urea pressure
• Air Brakes
• Corrosive fluid measurement for E&V applications

MEAS U86B Analog Output Pressure Sensor Performance Specifications

Supply Voltage: 5V
Ambient Temperature: 25°C after 10 sec warm-up (unless otherwise specified)

PARAMETERS
 MIN
 TYP
 MAX
 UNITS
 NOTES
Supply Voltage
 4.75
 5.00 5.25 V
Supply Current

12.5 mA DC
Ratiometric Output
 0.5
4.5 V
 1, 2
Accuracy (combined linearity, hysteresis & repeatability)
 -0.5
0.5 %Span
 3
Total Error Band
 -2.0
2.0 %Span
 4
Compensated Temperature
 -7
+105
 °C
Operating Temperature
 -7
+105
 °C
Storage Temperature
 -40
+125
 °C
Insulation Resistance (500Vdc)
 10

MΩ
 5
Reverse Voltage

16 V
Overvoltage Protection

16
 V
Short Circuit Protection
Continuous


Output Noise @ 1kHZ
13
mV
Response Time (10% to 90%)
1.0
ms
Long Term Stability
 -0.15
0.15
 %Span/Year
Output Load
 47 ± 10% KΩ resistor parallel with 0.01uF capacitor to return
Diagnostics Ability
 EEPROM Integrity – Lower Rail
Sensor Connection Check – Lower Rail
Sensor Short Check – Upper Rail
Power Loss Detection – Upper Rail

Notes
1. Ratiometric to supply voltage.
2. This product can be configured for custom OEM requirements. Contact factory for different transfer functions and output clipping. See Chart B.
3. Best fit straight line.
4. TEB includes all accuracy errors, thermal errors, span and zero tolerances over the compensated temperature range. See Chart A.
5. Between sensor body to any pins of connector.

MEAS U86B Analog Output Pressure Sensor ENVIRONMENTAL SPECIFICATIONS

PARAMETERS
 MIN
 TYP
 MAX
 UNITS
 NOTES
Pressure Overload

2X
 Rated
 6
Pressure Burst

3X
 Rated
 7
Pressure Cycle
 1M

Cycles
Material
 Port: 316/316L ST STL
Sealing: FKM Fluoroelastomer 70 (O-Ring)
Housing: PA66 + 30%GF
Notes
6. The maximum pressure that can be applied without changing the transducer’s performance or accuracy.
7. The maximum pressure that can be applied to a transducer without rupture of either the sensing element or transducer.

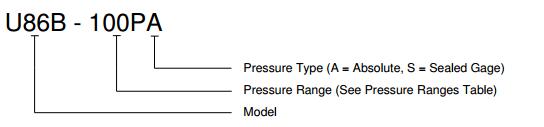

MEAS U86B Analog Output Pressure Sensor Ordering Information

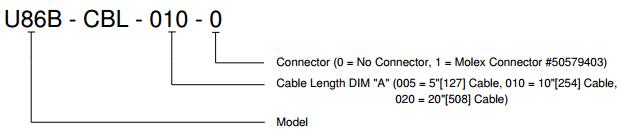

MEAS U86B Analog Output Pressure Sensor Cable Ordering Information
