Mouse over image to zoom

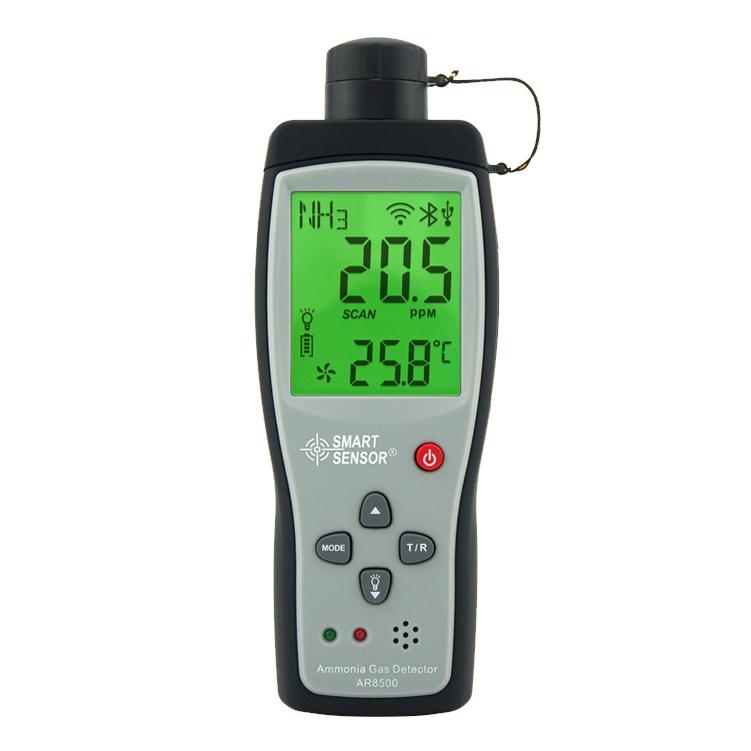

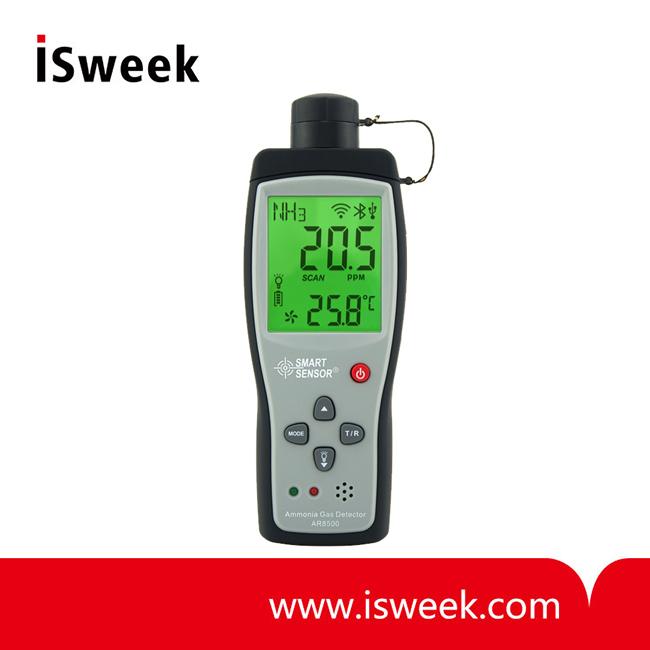

Ammonia (NH3) Gas Detector
-
Price
Price on request ≥1piece
-
Model Number
AR8500 -
Data Sheet
-
Package
Original packaging -
Specs
AR8500 -
Quantity
- +Send Inquiry
Find Similar Products
-
CO Gas Alarm for CO Detection
Model Number：GT
MOQ：1
-
Combustible, Explosive and Toxic Gas Leak Alarm
Model Number：GK
MOQ：1
-
Natural Gas, CO Leakage Detection with Plug
Model Number：GS
MOQ：1
-
Battery-operated CO Alarm With LCD Display; Comply with EN50291
Model Number：KAD
MOQ：1
-
Venus Carbon Monoxide Alarm, Battery-opearated CO Alarm
Model Number：Venus
MOQ：1
-
Combustible Gas Alarm with EN50194 Approval
Model Number：KAB
MOQ：1
Product Description
AR8500 Ammonia Gas Detector Product description:
Ammonia analyzer is a continuous quantitative analysis of formaldehyde concentration apparatus, the apparatus using imported high precision electrochemical principle formaldehyde sensor, fast response speed, high precision, of its stability, good repeatability.
The apparatus is widely used in metallurgy, power plant, farms, mines, chemical, scientific research, medical, pharmaceutical, environmental protection and other fields.
Ammonia concentration detector, gas detector, gas leak detector
Characteristics of the instrument:
• Adopt imported abroad electrochemical sensor
• Big screen for multiple parameters of LCD backlight display, visual display unit, gas concentration, working state
• The two grade dual alarm settings, the outstanding audio sound alarm, voice of up to 80 dB
• The service life of the sensor: 2 years(it can be replaced)
• Power supply: 3X1.5V AA battery
• Battery service life: about 100 hours of continuous use (when the backlight is off).
• Size: 182*66*32(mm)
AR8500 Ammonia Gas Detector Application:
• Farms, animal farm ammonia detection;
• Ambient air monitoring and evaluation,
• Landfill ammonia detection;
• Frozen field ammonia concentration;
• Dangerous space into the detection;
• Shop and workshop etc and the surrounding places ammonia detection;
• After decorating the house ammonia detection;
• Storage tanks, pipelines, valves, leakage detection;
• Waste field survey
AR8500 Ammonia Gas Detector Technical parameters
Ammonia analyzer is a continuous quantitative analysis of formaldehyde concentration apparatus, the apparatus using imported high precision electrochemical principle formaldehyde sensor, fast response speed, high precision, of its stability, good repeatability.
The apparatus is widely used in metallurgy, power plant, farms, mines, chemical, scientific research, medical, pharmaceutical, environmental protection and other fields.
Ammonia concentration detector, gas detector, gas leak detector
Characteristics of the instrument:
• Adopt imported abroad electrochemical sensor
• Big screen for multiple parameters of LCD backlight display, visual display unit, gas concentration, working state
• The two grade dual alarm settings, the outstanding audio sound alarm, voice of up to 80 dB
• The service life of the sensor: 2 years(it can be replaced)
• Power supply: 3X1.5V AA battery
• Battery service life: about 100 hours of continuous use (when the backlight is off).
• Size: 182*66*32(mm)
AR8500 Ammonia Gas Detector Application:
• Farms, animal farm ammonia detection;
• Ambient air monitoring and evaluation,
• Landfill ammonia detection;
• Frozen field ammonia concentration;
• Dangerous space into the detection;
• Shop and workshop etc and the surrounding places ammonia detection;
• After decorating the house ammonia detection;
• Storage tanks, pipelines, valves, leakage detection;
• Waste field survey
AR8500 Ammonia Gas Detector Technical parameters
|
Detection of gas |
Ammonia ( NH3 ) |
|
Measuring range |
0~100PPM |
|
Resolution |
0.1PPM |
|
Basic error |
0.5PPM |
|
Response time |
Less than 120 seconds |
|
Recovery time |
Less than 120 seconds |
|
Repeatability |
Less than ± 1% |
|
The principle of sensor |
Electrochemical principle, life for two years |
|
Battery |
3 x 1.5V AA Battery |
|
Display |
Large screen liquid crystal display |
|
To alarm |
Acoustic, optical double alarm, can set the alarm value, an alarm sound is divided into 80 dB |
|
Working temperature |
-20 ~ 50 ℃ |
|
Working humidity |
0-95%RH ( Non Gel) |
