All Ranges Protection Self-Restoring Digital Multimeter
-
Price
Price on request ≥1piece
-
Model Number
VC101A -
Data Sheet
-
Package
Original packaging -
Specs
VC101A -
Quantity
- +Send Inquiry
Find Similar Products
-
Pen-type Digital Multimeter
Model Number：MS8211/MS8211D
MOQ：1
-
Digital Insulation Tester
Model Number：MS5203/MS5203A
MOQ：1
-
Pocket Digital Multimeter
Model Number： M300
MOQ：1
-
True RMS Benchtop Digital Multimeter
Model Number：M9803R
MOQ：1
-
Digital Multimeter
Model Number：MAS830/MAS830B/MAS830L
MOQ：1
-
Digital Multimeter
Model Number：MAS838
MOQ：1
Product Description

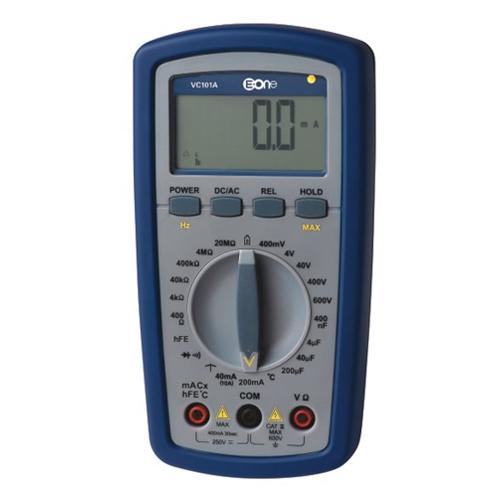

VC101A Digital Multimeter General Feature
• 3 3/4 digits, Digital and Analog dual display
• 22 measuring ranges
• Remote Control function
• Resistance measurements, diode and continuity tests
• Thermometer,Galvanometer, hFE measurements
• Frequency and capacitance measurements
• Self recover electronic protected circuit, no physical fuses required
• Splashed water protection, Dustproof, 1.5 Dropproof design.
• Discretionary range can withstand impulses (in excess of 250v), even including current port
• AC/DC 1000V surge absorption
• Voltage/Current range--Frequency measurements one-key exchange
• Data Hold/ Max Recording / REL
• Auto power-off
VC101A Digital Multimeter Accessories
1 xDouble-plastic test lead set, 1 x hFE test set, 1 x Semiconductor temperature probe,
1 x 10A current adaptor, 1 x Zip oxford bag, 1x user's manual
Dimension: 160 x 85 x .35mm
Weight: 450g (include batteries)
VC101A Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Accuracy |
|
DC Current |
400mV/4V/40V/400V/600V |
±(0.5%+3d) |
|
AC Voltage |
400mV/4V/40V/400V/600V |
±(1.0%+3d) |
|
DC Current |
40mA/200mA/10A |
±(1.0%+3d) |
|
AC Current |
40mA/200mA/10A |
±(1.5%+3d) |
|
Resistance |
400/4k/40k/400k/4M/20MΩ |
±(0.8%+3d) |
|
Capacitance |
400nF/4μF/40μF/200μF |
±(4.0%+5d) |
|
Temperature |
-20℃ ~ +400℃ |
±(1.0%+3d) |
|
Frequency |
2kHz |
±(1.0%+1d) |
|
Galvanometer |
40μA~0~+40μA |
±(2.0%+3d) |
|
hFE |
0~1000 |
±(5% +3d) |
