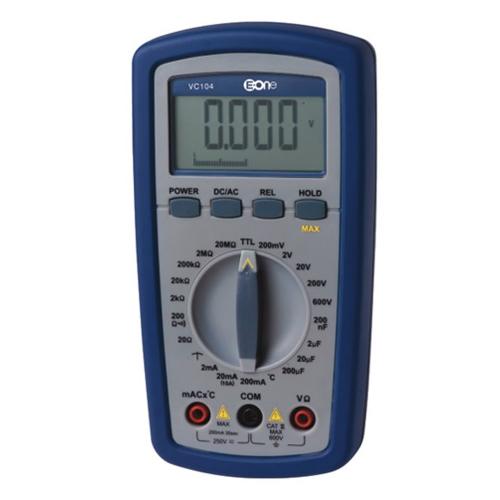

All Ranges Protection High Accuracy Self-Restoring Digital Multimeter
-
Price
Price on request ≥1piece
-
Model Number
VC104 -
Data Sheet
-
Package
Original packaging -
Specs
VC104 -
Quantity
- +Send Inquiry
Find Similar Products
-
Pen-type Digital Multimeter
Model Number：MS8211/MS8211D
MOQ：1
-
Digital Insulation Tester
Model Number：MS5203/MS5203A
MOQ：1
-
Pocket Digital Multimeter
Model Number： M300
MOQ：1
-
True RMS Benchtop Digital Multimeter
Model Number：M9803R
MOQ：1
-
Digital Multimeter
Model Number：MAS830/MAS830B/MAS830L
MOQ：1
-
Digital Multimeter
Model Number：MAS838
MOQ：1
Product Description
VC104 Digital Multimeter General Feature
• 4 1/2 digit, Digital and Analog Dual display
• 22 measuring ranges
• Voltage/Current measurements
• Capacitance measurement
• Resistance measurement and Continuity test
• Thermometer measurements
• Self recover electronic protected circuit, no physical fuses required
• Splashed water protection, dustproof, 1.5 meter dropproof design
• Discretionary range can withstand the impulses (in excess of 250V), even including the current port.
• AC/DC 1000V surge absorption
• 20μA DC current measurement(galvanometer), resolution 10nA
• Unique TTL logic test, with bar graph displaying TTL electrical voltage level simultaneously.
• Data Hold/ Max Recording /REL
• Auto power-off
VC104 Digital Multimeter Accessories
1 xDouble plastic test leads sets, 1 x thermometer probe, 1 x 10A Adaptor,
1 x Zip oxford bag, 1x user's manual
Dimension: 160 x 85 x .35mm
Weight: 450g (include batteries)
VC104 Digital Multimeter Measurement Range and Accuracy
|
Function |
Range |
Accuracy |
|
DC Voltage |
200mV/2V/20V/200V/600V |
±(0.2%+3d) |
|
AC Voltage |
200mV/2V/20V/200V/600V |
±(0.5%+3d) |
|
DC Current |
20mA/200mA/10A |
±(0.8%+3d) |
|
AC Current |
20mA/200mA/10A |
±(1.2%+3d) |
|
Resistance |
200/2k/20k/200k/2M/20MΩ |
±(0.5%+3d) |
|
Capacitance |
200nF/2μF/20μF/200μF |
±(2.5%+5d) |
|
Galvanometer |
20μA~0~+20μA |
±(2.5%+3d) |
|
TTL |
0V~20V |
±(1.5%+3d) |
|
Temperature |
-20℃~400℃ |
±(1.0%+5d) |
