• Air Laser Particulate Matter Sensor
Mouse over image to zoom

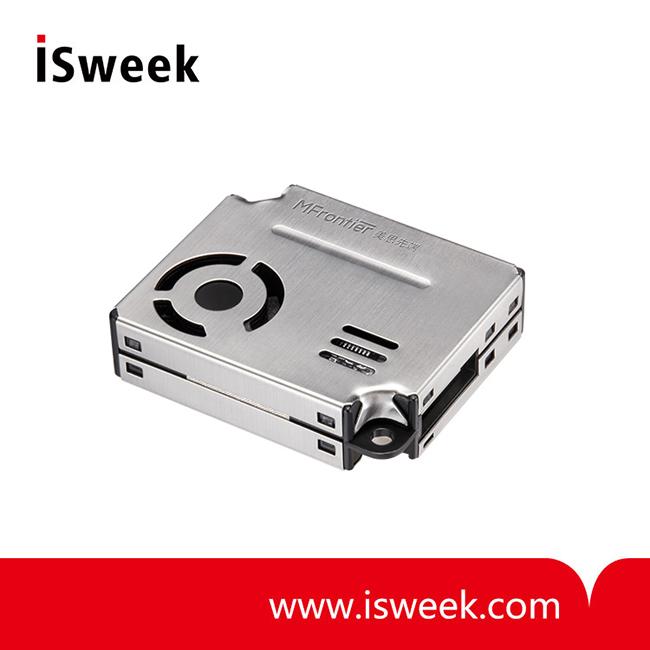

Air Laser Particulate Matter Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    MPM12-BG

  • Data Sheet

  • Package

    Original packaging

  • Specs

    MPM12-BG

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

    MPM12 series laser dust sensor adopts laser scattering principle, with stable light source, constant light intensity, fast response, high detection accuracy and long service life.



Product appearance and size:




Product parameters:

parameters

index

Types of particle detection

PM1.0, PM2.5, PM10

Particle detection diameter range

0.3-10μm

Particulate matter concentration

range (PM2.5 standard value)

0~1000μg/m3

Particle Mass Concentration Resolution

1μg/m3

Consistency of particulate matter

concentration (PM2.5 standard value) *Note

±10%(@100~500μg/m3 )

±10μg/m3 (@ 0~100μg/m3 )

single response time

≤1 s

Comprehensive response time

≤10 s

DC supply voltage

5.0V

Working current

≤85mA

Stand-by current

≤45μA

Data interface level

L < 0.8 (@3.3); H > 2.7(@3.3)

Storage temperature

-30℃～+70℃

Range of working temperature

-10℃~+60℃

Working humidity range

0~99%RH(no condensation)

Mean time between failures

≥5 Years

Dimensions

47.8*39.8*11.8mm(L×W×H)

Note: The particle concentration consistency data is data 2 in the communication protocol (test conditions: 25±2℃, 50±10%RH).
