• Air Laser Particulate Matter Sensor
Mouse over image to zoom

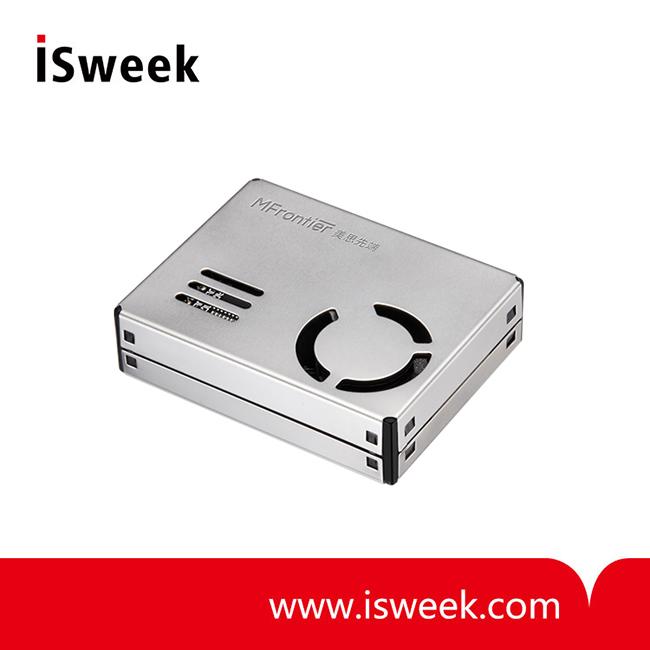

Air Laser Particulate Matter Sensor

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    MPM11 series

  • Data Sheet

  • Package

    Original packaging

  • Specs

    MPM11 series

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description

    MPM11 series laser dust sensor adopts laser scattering principle, with stable light source, constant light intensity, fast response, high detection accuracy and long service life.



Product parameters

Parameters

Indexes

Types of particle detection

PM1.0, PM2.5, PM10

Particle detection diameter range

0.3-10μm

Particulate matter concentration range

（PM2.5 standard value）

0~1000μg/m3

Particle Mass Concentration Resolution

1μg/m3

Consistency of particulate matter concentration(PM2.5 standard value) *Note

±10%(@100 ~ 500μg/m3)

±10μg/m3 (@ 0 ~100μg/m3)

Single response time

≤1s

Comprehensive response time

≤10s

DC supply voltage

5.0V

Working current

≤85mA

Stand-by current

≤45μA

Output method

UART / IIC / PWM

Storage temperature

-30℃~+70℃

Range of working temperature

-10℃~+60℃

Working humidity range

0-99%RH (without condensation)

Mean time between failures

≥3 Years

Dimensions

37 . 8*34 . 8*11.8mm(L×W×H)

Note: The particle concentration consistency data is data 2 in the communication protocol (test conditions: 25±2℃, 50±10%RH)
