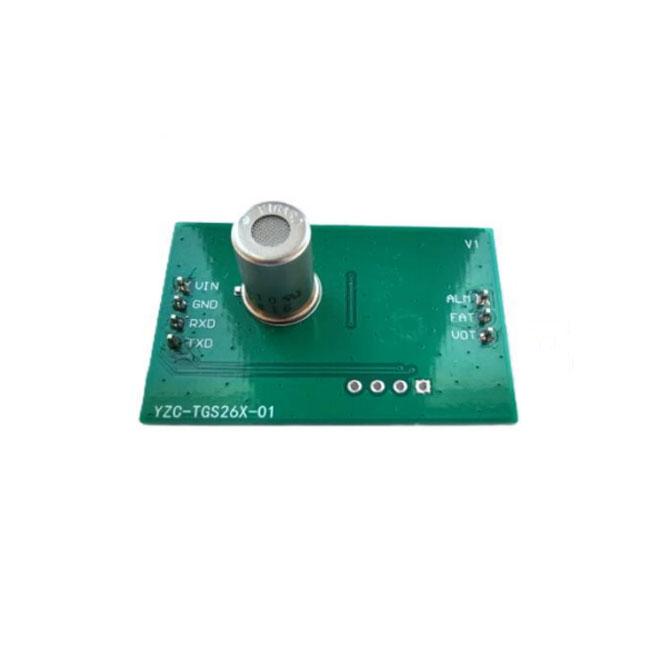

AG-2 Module With Figaro’s TGS26 Series Sensors

ISweek online 2h ago

ISweek_com

Send Inquiry Chat Now

  • Price

    Price on request   ≥1piece

  • Model Number

    AG-2-GSB-M26XX

  • Data Sheet

  • Package

    Original packaging

  • Specs

    AG-2-GSB-M26XX

  • Quantity

    - +

  • Send Inquiry

Find Similar Products

Product Description


AG-2 module with Figaro’s TGS26 series sensors Product Description：

The AG-2-GSB-M26XX is an embedded type module equipped with the Figaro’s TGS26 series semiconductor Sensor, capable of detecting via gases such as methane (CH4), LP gas, and Hydrogen (H2) in diverse environments. The module has been pre-calibrated before leaving the factory and has good durability, stability, and anti-poisoning. It includes a built-in temperature sensor for data correction via software algorithms to minimize environmental impact on measurement accuracy. It utilizes digital communication through a UART bus output for gas concentration readings, which allows users to easily and quickly integrate the module into various systems. This makes it suitable for both residential and industrial gas detection applications.



AG-2 module with Figaro’s TGS26 series sensors Technical Specification：

Item

Specification

Model Number

AG-2-GSB-M26XX

Target Gases

CH4, C3H8, H2 etc

Sensing Principle

Semiconductor

Detection Range

See corresponding sensor spec

Measurement Error

< ±5% FS

Operating Voltage

5V±0.1V DC

Operating Current

See corresponding sensor spec

Output Signal

UART (+3.3V TTL)

Temperature Range

-10 - 55°C

Humidity Range

0% -90%RH

Pressure Range

1 ± 0.1 atm

Storage Temperature

10 - 40°C

Size

L*W*H=41mm*27mm*22mm(TGS2610-D)

Expected Life

See the corresponding sensor data sheet for details
