A Powerful Wired Ultrasonic Anemometer
-
Price
Price on request ≥1piece
-
Model Number
Ultrasonic Wired -
Data Sheet
-
Package
Original packaging -
Specs
Ultrasonic Wired -
Quantity
- +Send Inquiry
Find Similar Products
-
Wind Speed Sensor
Model Number：#400
MOQ：1
-
Wind Speed Sensor Weather Monitoring
Model Number：MX600 MX500 MX300 MX200
MOQ：1
-
Vortex Pole Mount Anemometer with Dual Digital Display
Model Number：Pole Mount
MOQ：1
-
Vortex II Series Heavy Duty Anemometer with Reed Switch
Model Number：Vortex II Series
MOQ：1
-
Vortex Wind Sensor Classic
Model Number：Classic
MOQ：1
-
Ultrasonic Wind Speed Sensor
Model Number：CV7-E
MOQ：1
Product Description

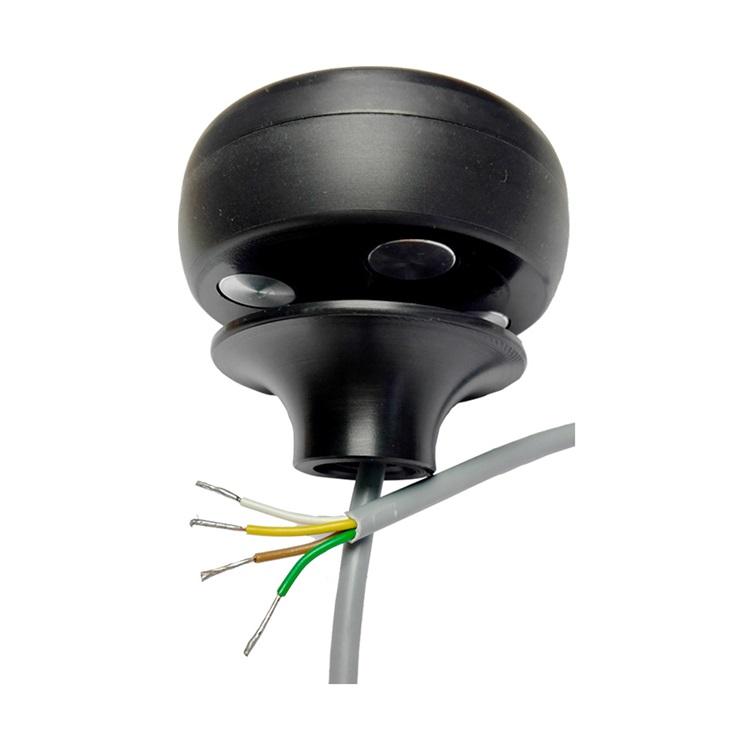

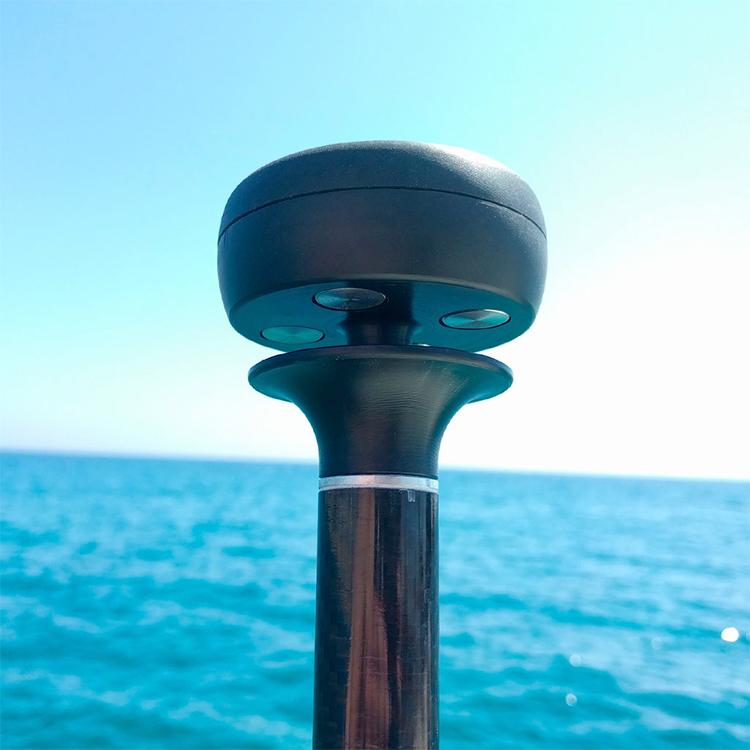

Ultrasonic Wired (Ultrasonic Anemometer) Description
A powerful wired ultrasonic anemometer
Built with ultrasonic sensors, it will provides you one of the greatest accuracy we have ever made in an anemometer. Allowing a continuos measurement of wind speed and direction.
Ultrasonic Wired (Ultrasonic Anemometer) Specifications
A powerful wired ultrasonic anemometer
Built with ultrasonic sensors, it will provides you one of the greatest accuracy we have ever made in an anemometer. Allowing a continuos measurement of wind speed and direction.
Ultrasonic Wired (Ultrasonic Anemometer) Specifications
|
Wind Speed |
Range: 0 to 40 m/s Resolution: ±0.1 m/s |
|
Wind direction |
Range: 0 - 360° Resolution: ±1 |
|
Sensors |
Ultrasonic transducers (4x) Sample rate: 1, 4, 8 Hz Thermometer, Gyroscope, Accelerometer |
|
Power |
VCC 5V - 24V |
|
Data output |
Bluetooth 4.1 NMEA0183 (RS422, RS485), sentences selectables via Bluetooth Baud rate: 4800/38400 (8n1) bauds. |
|
Firmware |
Upgradable Current version: 0.44 |
|
IP Code |
NOT allow to be submerged fully or partially in water |
|
Dimensions |
Diameter: 70 mm Height: 57 mm Cable: 1.5 meters |
|
Weight |
130 grams |
