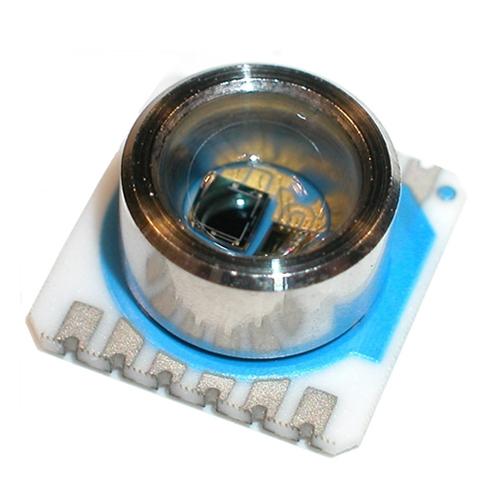

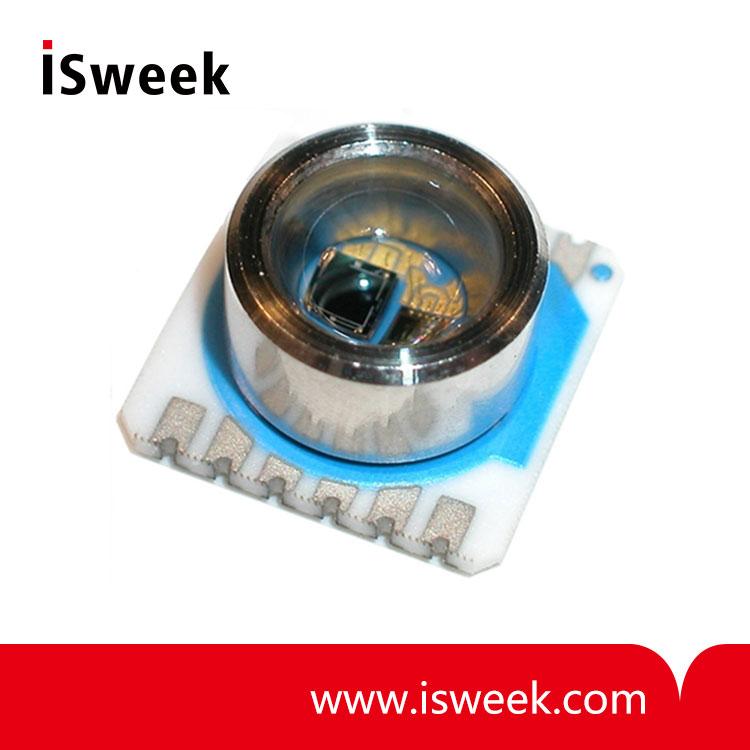

MS5535-30C 30 bar Pressure Sensor Module Specifications
• 0 - 30 bar absolute pressure range
• 6 coefficients for software compensation stored on-chip
• Piezoresistive silicon micromachined sensor
• Integrated miniature pressure sensor 9 x 9 mm
• 16 Bit ADC
• 3-wire serial interface
• 1 system clock line (32.768 kHz)
• Low voltage and low power consumption
MS5535-30C 30 bar Pressure Sensor Module Description
The MS5535-30C is a high-pressure version of MS5535C pressure sensor module. It contains a precision piezoresistive pressure sensor and an ADC-Interface IC. It uses an antimagnetic polished stainless ring for sealing O-ring. It provides a 16 Bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535-30C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.
MS5535-30C 30 bar Pressure Sensor Module Features
• Resolution 3.0 mBar
• Supply voltage 2.2V to 3.6V
• Low supply current < 5uA
• Standy current < 0.1µA
• -40°C to +125°C operation temperature
• 16 Bit ADC resolution pressure measurement and control systems
MS5535-30C 30 bar Pressure Sensor Module Field of application
• Mobile water depth measurement systems
• Diving computers and divers watches
MS5535-30C 30 bar Pressure Sensor Module Technical Data
MS5535-30C 30 bar Pressure Sensor Module Device Package Outlines
• 0 - 30 bar absolute pressure range
• 6 coefficients for software compensation stored on-chip
• Piezoresistive silicon micromachined sensor
• Integrated miniature pressure sensor 9 x 9 mm
• 16 Bit ADC
• 3-wire serial interface
• 1 system clock line (32.768 kHz)
• Low voltage and low power consumption
MS5535-30C 30 bar Pressure Sensor Module Description
The MS5535-30C is a high-pressure version of MS5535C pressure sensor module. It contains a precision piezoresistive pressure sensor and an ADC-Interface IC. It uses an antimagnetic polished stainless ring for sealing O-ring. It provides a 16 Bit data word from a pressure and temperature dependent voltage. Additionally the module contains 6 readable coefficients for a highly accurate software calibration of the sensor. MS5535-30C is a low power, low voltage device with automatic power down (ON/OFF) switching. A 3-wire interface is used for all communications with a microcontroller.
MS5535-30C 30 bar Pressure Sensor Module Features
• Resolution 3.0 mBar
• Supply voltage 2.2V to 3.6V
• Low supply current < 5uA
• Standy current < 0.1µA
• -40°C to +125°C operation temperature
• 16 Bit ADC resolution pressure measurement and control systems
MS5535-30C 30 bar Pressure Sensor Module Field of application
• Mobile water depth measurement systems
• Diving computers and divers watches
MS5535-30C 30 bar Pressure Sensor Module Technical Data
|
Sensor Performances (VDD = 3 V) |
||||
|
Pressure |
Min |
Typ |
Max |
Unit |
|
Range |
0 |
|
30 |
bar |
|
ADC |
16 |
bit |
||
|
Resolution |
3 |
mbar |
||
|
Accuracy 0°C to +40°C,
0 to 10 bar |
-65 |
|
+50 |
mbar |
|
Accuracy -20°C to +85°C 0 to 10 bar |
-100 |
|
+250 |
mbar |
|
Response time |
35 |
ms | ||
|
Long term stability |
|
50 |
|
mbar/yr |
|
Temperature |
Min |
Typ |
Max |
Unit |
|
Range |
-40 |
|
+125 |
°C |
|
Resolution |
0.005 |
|
0.015 |
°C |
|
Accuracy |
-0.8 |
|
+0.8 |
°C |
MS5535-30C 30 bar Pressure Sensor Module Device Package Outlines
