Product Description

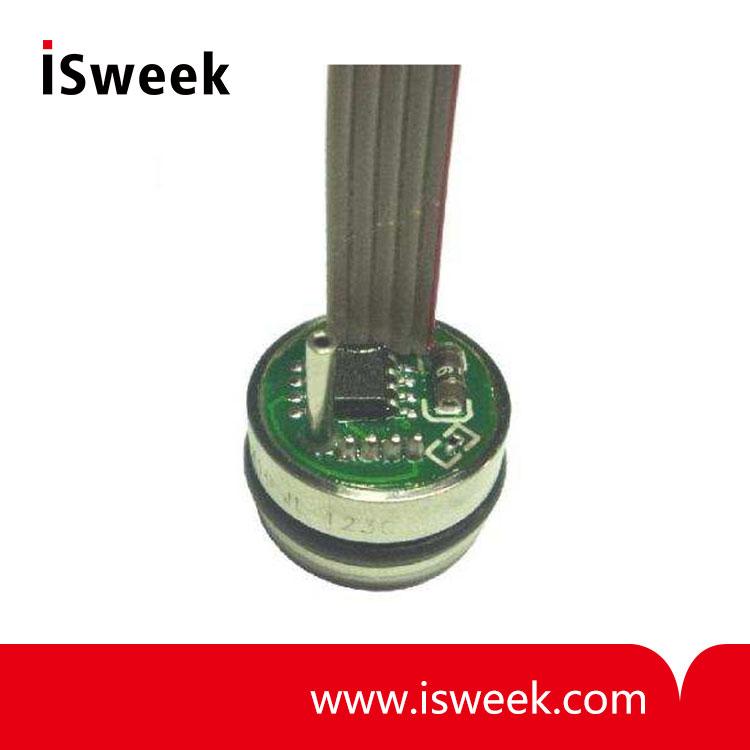

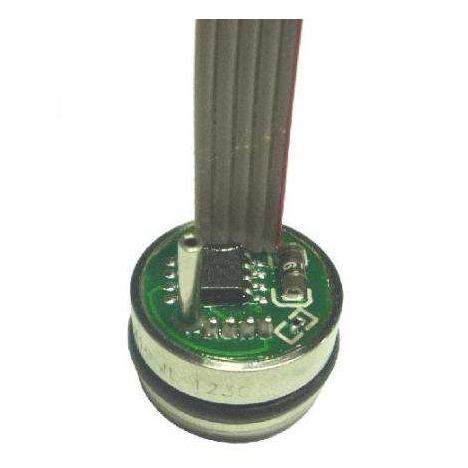

86BSD Digital Output Pressure Sensor Specifications
• Stainless steel with O-ring seal
• Pressure/temperature read-out
• Digital output
• ASIC calibrated
• Absolute, gage
• Cable/connector option
• Low power option
• 16mm diaphragm diameter
The 86BSD is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. This 14-bit digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage and is designed for o-ring mounting. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element.
The 86BSD is designed for high performance, low pressure applications. A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.
For a similar sensor with stainless steel fittings, refer to the 85BSD digital output pressure sensor.
86BSD Digital Output Pressure Sensor Features
• Mountable with O-ring seal
• ±0.25% Accuracy
• ±1.0 Total Error Band
• Cable/connector option
• Low power option
• I2C or SPI Interface protocols
86BSD Digital Output Pressure Sensor Applications
• Level controls
• Tank level measurement
• Corrosive fluids and gas measurement systems
• Sealed systems
• Manifold pressure measurement
• Barometric pressure measurement
• Submersible depth monitoring
86BSD Digital Output Pressure Sensor Performance Specifications
Supply Voltage: 3.3Vdc
Ambient Temperature: 25°C (unless otherwise specified
Notes
1. Measured at vacuum for absolute(A), ambient for gage(G) and sealed gage(S). Output is not ratiometric to supply voltage.
2. Accuracy: combined linearity, hysteresis and repeatability.
3. Total Error Band: includes calibration errors and temperature effects over the compensated range. See Figure 3.
4. The deviation from a best fit straight line (BFSL) fitted to the output measured over the compensated temperature range. For errors beyond the compensated temperature range, See Figure 2.
5. Between case and sensing element.
6. 2X or 400psi, whichever is less. The maximum pressure that can be applied to a transducer without changing the transducer's performance or accuracy.
7. 3X or 600psi, whichever is less. The maximum pressure that can be applied to a transducer without rupture of either the sensing element or transducer.
8. Maximum temperature range for product with standard cable and connector is -20°C to +105°C.
9. Start time to data ready is the time to get valid data after POR (Power on Reset). The time to get subsequent valid data is then specified by the response time specification.
86BSD Digital Output Pressure Sensor Ordering Information
• Stainless steel with O-ring seal
• Pressure/temperature read-out
• Digital output
• ASIC calibrated
• Absolute, gage
• Cable/connector option
• Low power option
• 16mm diaphragm diameter
The 86BSD is a small profile, media compatible, piezoresistive silicon pressure sensor packaged in a 316L stainless steel housing. This 14-bit digital output pressure sensor supports I2C and SPI interface protocols, may come in a 3.3 or 5.0Vdc supply voltage and is designed for o-ring mounting. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element.
The 86BSD is designed for high performance, low pressure applications. A custom ASIC is used for temperature compensation, offset correction, and provides a digital output of 10~90% or 5~95%.
For a similar sensor with stainless steel fittings, refer to the 85BSD digital output pressure sensor.
86BSD Digital Output Pressure Sensor Features
• Mountable with O-ring seal
• ±0.25% Accuracy
• ±1.0 Total Error Band
• Cable/connector option
• Low power option
• I2C or SPI Interface protocols
86BSD Digital Output Pressure Sensor Applications
• Level controls
• Tank level measurement
• Corrosive fluids and gas measurement systems
• Sealed systems
• Manifold pressure measurement
• Barometric pressure measurement
• Submersible depth monitoring
86BSD Digital Output Pressure Sensor Performance Specifications
Supply Voltage: 3.3Vdc
Ambient Temperature: 25°C (unless otherwise specified
|
Parameters |
Min |
Typ |
Max |
Units |
Notes |
|
Zero Pressure Output (10% ~ 90%) |
|
666 |
|
Count Hex |
1 |
|
Zero Pressure Output (5% ~ 95%) |
|
333 |
|
Count Hex |
1 |
|
Full Scale Pressure Output (10% ~ 90%) |
|
399A |
|
Count Hex |
1 |
|
Full Scale Pressure Output (5% ~ 95%) |
|
3CCB |
|
Count Hex |
1 |
|
Accuracy |
-0.25 |
|
0.25 |
%Span |
2 |
|
Total Error Band |
-1 |
|
1 |
%Span |
3 |
|
Pressure Resolution |
0.008 |
|
|
%Span |
|
|
Temperature Accuracy |
-1.5 |
|
1.5 |
°C |
4 |
|
Resolution – Temperature |
|
0.1 |
|
°C |
|
|
Input Voltage Range |
2.7 | 3.3 | 5.5 |
V |
1 |
|
Supply Current |
|
3 |
|
mA |
|
|
Insulation Resistance (50Vdc) |
50 |
|
|
MΩ |
5 |
|
Overpressure |
|
|
2X |
Rated |
6 |
|
Burst Pressure |
|
|
3X |
Rated |
7 |
|
Load Resistance (RL) |
10 |
|
|
KΩ |
|
|
Long Term Stability (Offset & Span) |
|
±0.5 |
|
%Span/Year |
|
|
Compensated Temperature (≤5psi) |
0 |
|
50 |
°C |
|
|
Compensated Temperature (≥15psi) |
-20 |
|
+80 |
°C |
|
|
Operating Temperature |
-40 |
|
+125 |
°C |
|
|
Storage Temperature |
-40 |
|
+125 |
°C |
8 |
|
Output Pressure Resolution |
|
|
14 |
Bits |
|
|
Output Temperature Resolution |
8 |
|
11 |
Bits |
|
|
Start Time to Data Ready |
|
|
8.4 |
ms |
9 |
|
Output Type |
10% to 90% or 5% to 95% |
||||
|
Interface Type |
I2C (ADDR, 0x28H) I2C (ADDR, 0X36H) I2C (ADDR, 0x46H) SPI |
||||
|
Media – Pressure |
Liquids and gases compatible with 316/316L Stainless Steel |
||||
1. Measured at vacuum for absolute(A), ambient for gage(G) and sealed gage(S). Output is not ratiometric to supply voltage.
2. Accuracy: combined linearity, hysteresis and repeatability.
3. Total Error Band: includes calibration errors and temperature effects over the compensated range. See Figure 3.
4. The deviation from a best fit straight line (BFSL) fitted to the output measured over the compensated temperature range. For errors beyond the compensated temperature range, See Figure 2.
5. Between case and sensing element.
6. 2X or 400psi, whichever is less. The maximum pressure that can be applied to a transducer without changing the transducer's performance or accuracy.
7. 3X or 600psi, whichever is less. The maximum pressure that can be applied to a transducer without rupture of either the sensing element or transducer.
8. Maximum temperature range for product with standard cable and connector is -20°C to +105°C.
9. Start time to data ready is the time to get valid data after POR (Power on Reset). The time to get subsequent valid data is then specified by the response time specification.
