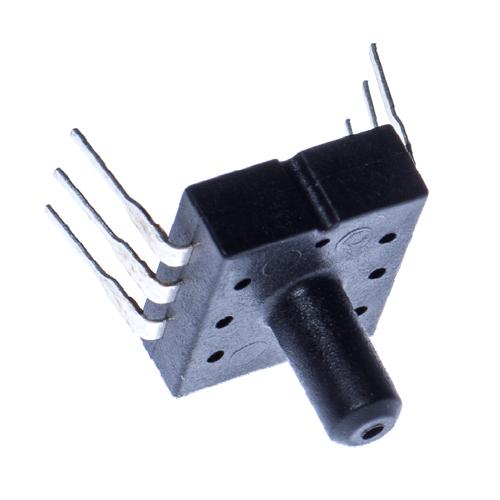

100 psi Absolute Pressure Sensor with Analogue Output
-
Price
Price on request ≥1piece
-
Model Number
SPD100AA -
Data Sheet
-
Package
Original packaging -
Specs
SPD100AA -
Quantity
- +Send Inquiry
Find Similar Products
-
Gage Pressure Transmitters 0~160MPa, -40~80℃
Model Number：MIDA-SG-13
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-11-H
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-1.6MPa
Model Number：MIDA-SG-12-06-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-40MPa
Model Number：MIDA-SG-12-081-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-60MPa
Model Number：MIDA-SG-12-082-C
MOQ：1
-
High-temperature Gage Pressure Transmitters 0-160MPa
Model Number：MIDA-SG-12-12-H
MOQ：1
Product Description

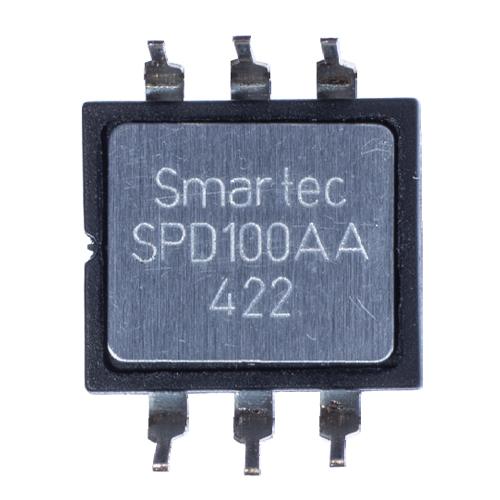

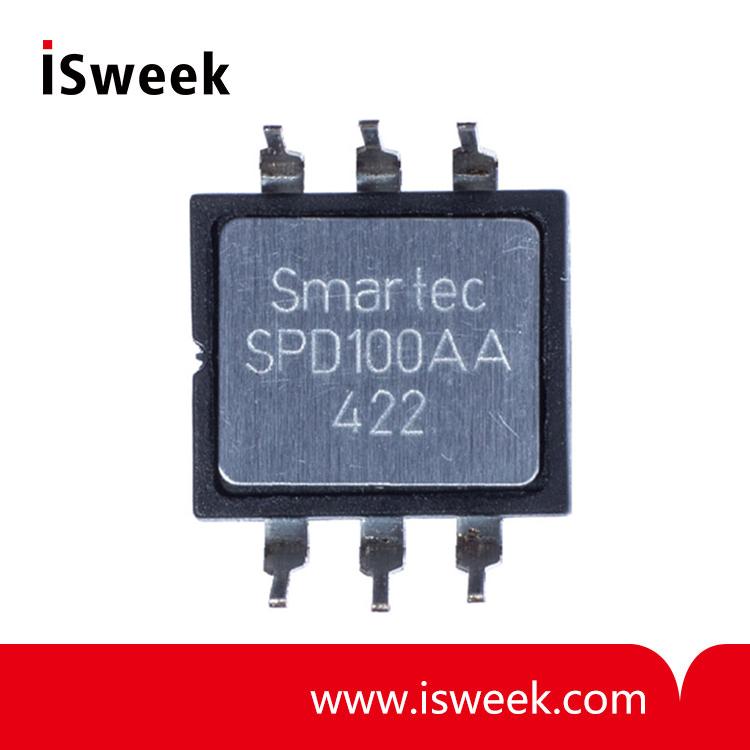

This Smartec pressure sensor has an amplified analogue output. The sensor is compensated for offset, sensitivity, temperature drift and nonlinearity.
The sensor has a range of 100 psi absolute. Other ranges can be delivered on request. The output is ratiometric to the power supply voltage. At 5 Vcc the output span is 0.5 to 4.5 V.
SPD100AA Absolute Pressure Sensor Electrical Characteristics
Performance Characteristic at Vcc =5V excitation @ 25 °C|
Parameter |
Min |
Typ |
Max |
Units |
|
Supply Voltage |
4.75 |
5 |
5.25 |
V |
|
Supply Current |
|
|
3 |
mA |
|
Pressure range (fs) |
0 |
|
100 |
psi |
|
Zero Output *) |
0.428 |
0.5 |
0.572 |
Vdc |
|
Span Output *80) |
|
4.00 |
|
Vdc |
|
Max output current |
|
|
2.2 |
mA |
|
Accuracy **) |
|
|
±1.8 |
%FS |
|
Response time |
|
1 |
2 |
ms |
|
Pressure overload |
|
|
3x |
Rated pressure |
|
Operating temperature |
-20 |
|
85 |
°C |
|
Storage temperature |
-40 |
|
125 |
°C |
Wetted materials are: Pyrex Glass, Epoxy and silicon
*) Output is ratiometric to supply voltage
**) all errors included, temperature compensation over 50 ° °C
